Description
The control unit of the range change group changeover system
consists of the shift valve (1) and the pneumatic cylinder with
a double effect in the transmission (2).

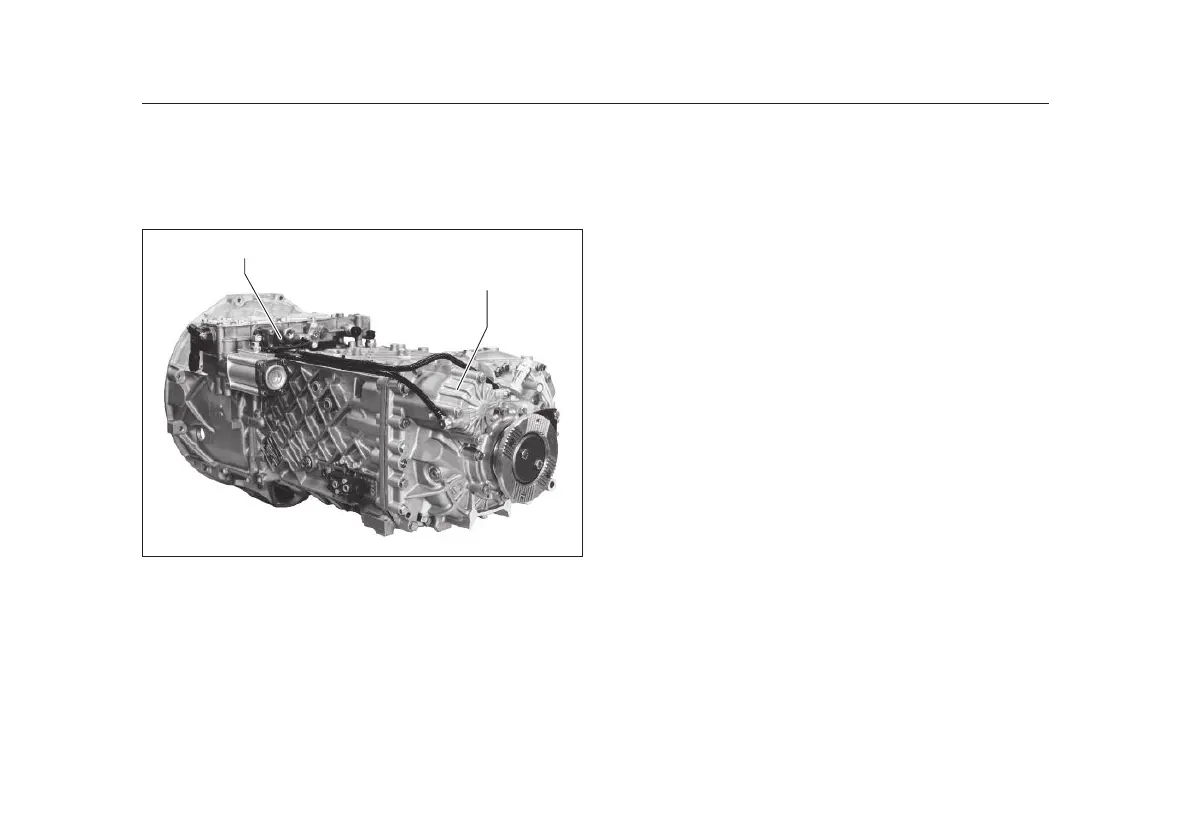

Fig. 4
1 Shift valve
2 Pneumatic cylinder
Splitter group
The splitter group is actuated via a preselection switch at the
shift lever (Fig. 2 and 2a). The driver uses this preselection
switch to preselect the low or high splitter group which is then
triggered by depressing the clutch pedal.
NOTE
• Changeover is triggered when completely depressing the
clutch pedal.
• Keep the clutch pedal pressed until the splitter group has
changed.
Depending on the vehicle operating conditions, it is possible
to split every gear.
Please also note the details provided by the vehicle manu-
facturer.
