Maintenance Buses: Oil Drain, Oil Filler, and Oil Overflow Plugs
34
6085 758 102b - 2006-10

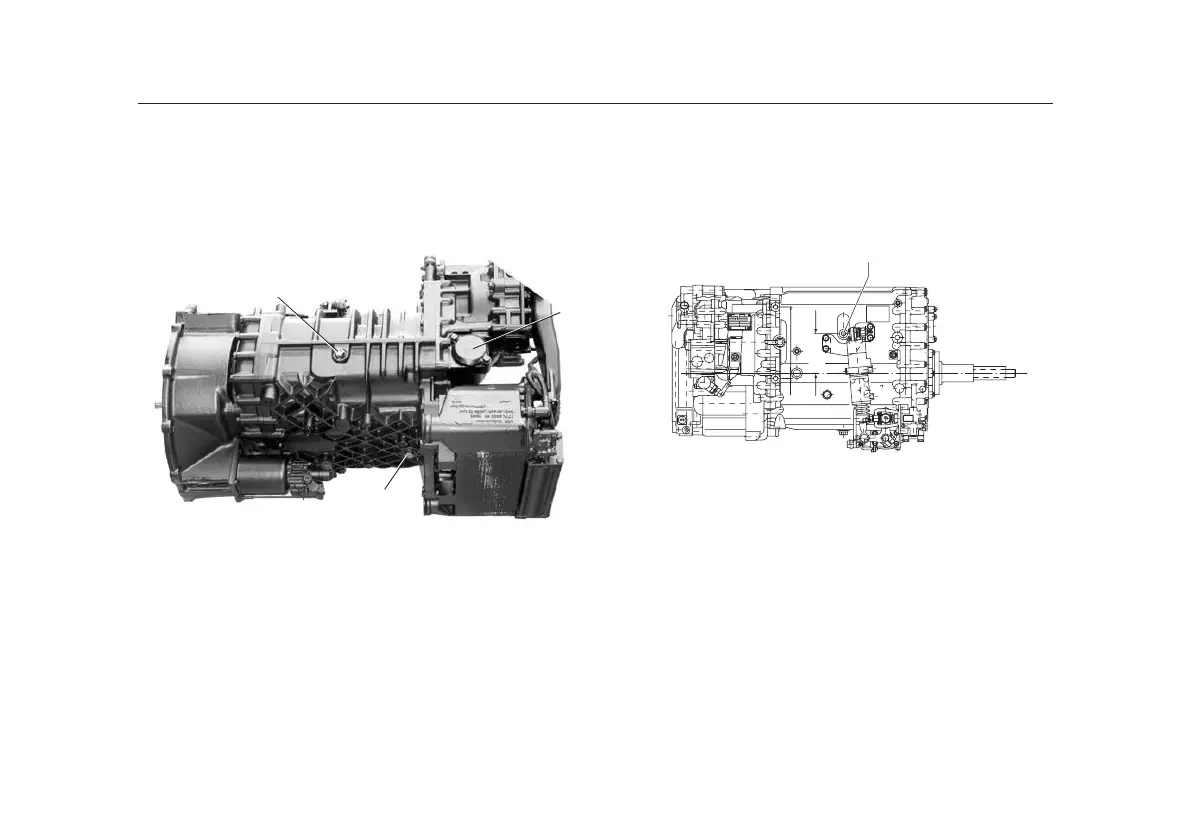

Fig. 5
Transmission
6 S 1600 IT, 6 S 1601 BD, 6 S 1701 BO, 6 S 1901 BO
alu heat exchanger at bottom
1 = Oil drain location transmission
3 = Oil filter cover Intarder housing
4 = Oil overflow and oil fill after oil change
9 = Oil filler plug after repair
Tightening torques refer to table on page 46.
009 413
4
1
3
