Maintenance Buses: Oil Drain, Oil Filler, and Oil Overflow Plugs
36
6085 758 102b - 2006-10
Fig. 7

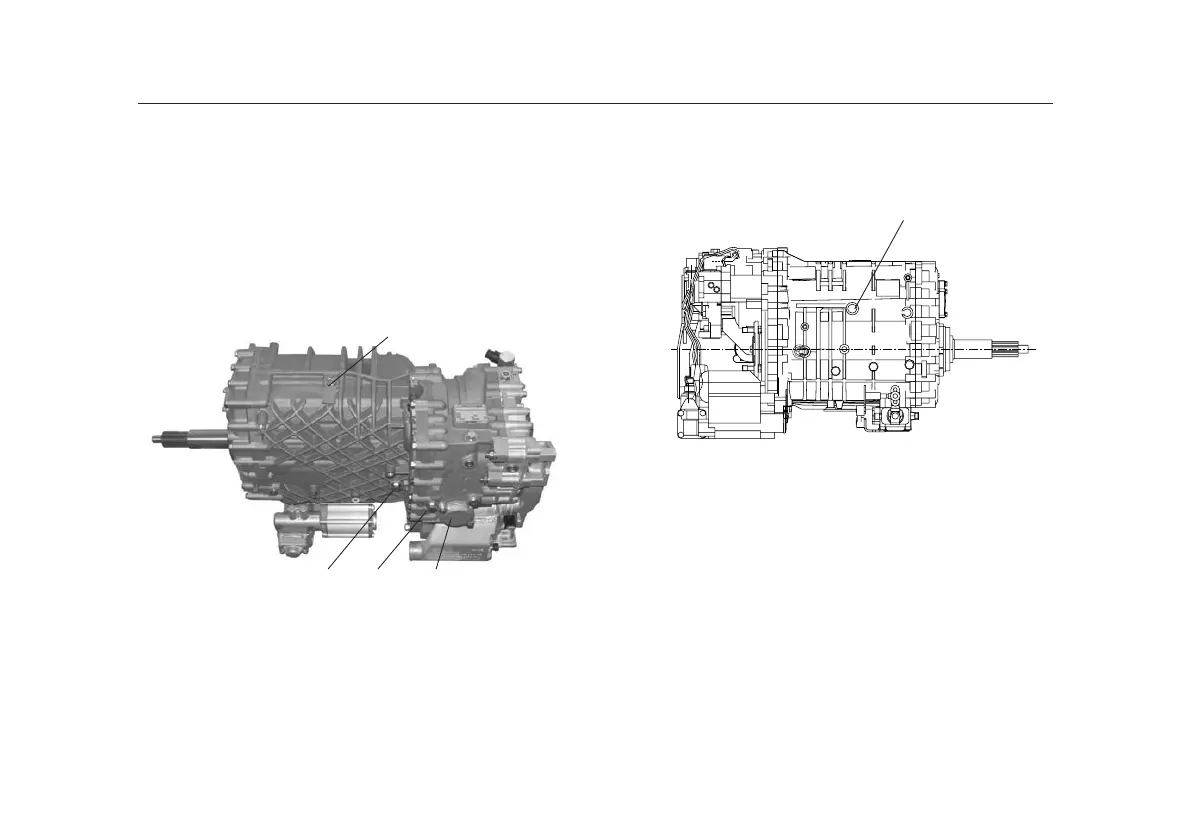

Transmission
6 S 1600 IT, 6 S 1601 BD, 6 S 1701 BO, 6 S 1901 BO
alu heat exchanger on the right
1 = Oil drain location transmission
2 = Oil drain location Intarder housing
3 = Oil filter cover Intarder housing
4 = Oil overflow and oil fill after oil change
9 = Oil filler plug after repair
Tightening torques refer to table on page 46.
