124 Keysight N9927-90001 User’s Guide
Calibration for NA, CAT, and VVM Modes
The following appears:

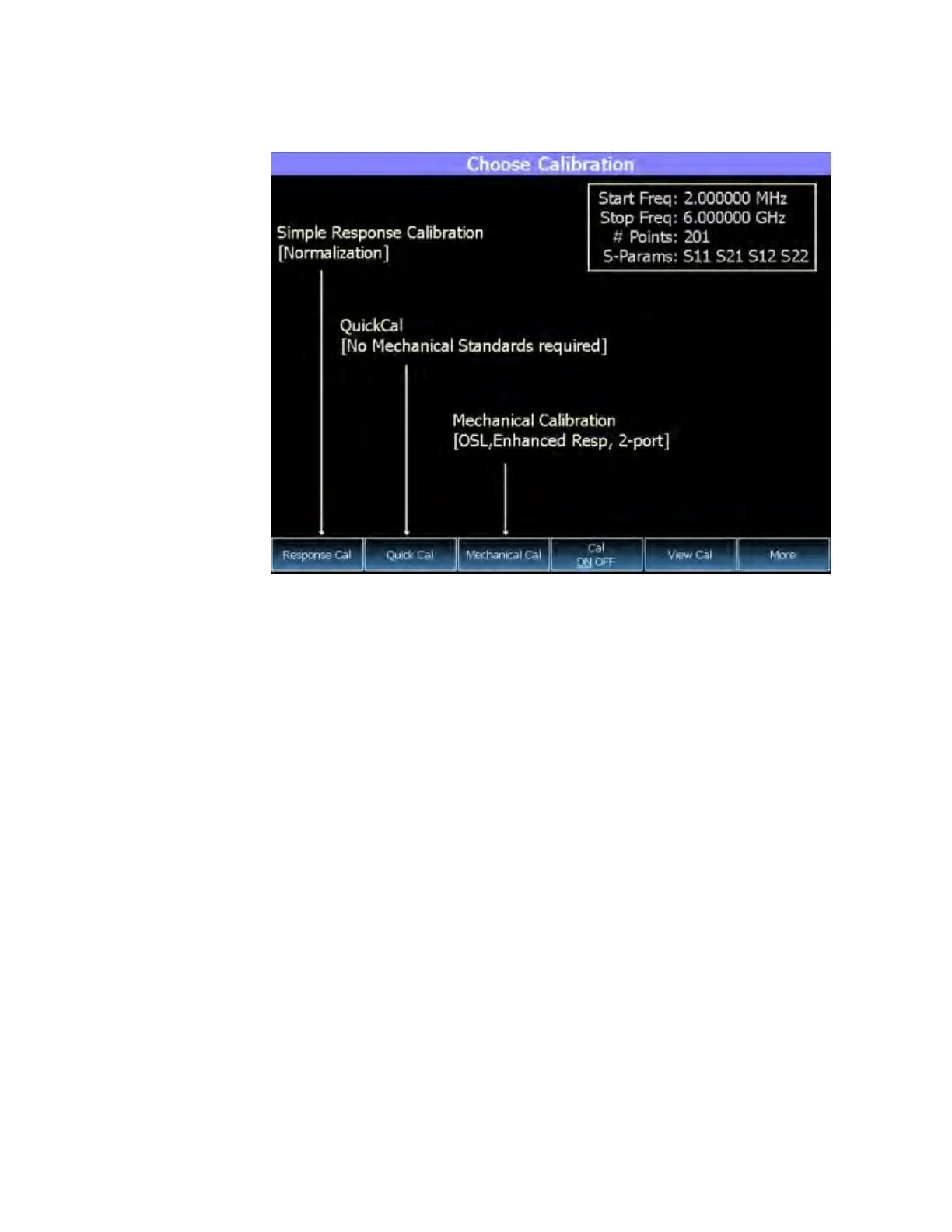

Choose Calibration Method screen
— Response Cal – Used to quickly calibrate ONE type of measurement using
mechanical standards. Measurement accuracy is generally low. Learn more
in “Simple Response Cals ” on page 132.
— Quick Cal – Using built-in cal standards and CalReady, quickly and
accurately calibrate measurements when using a jumper cable or adapter
to connect the DUT to the FieldFox test ports. Learn more in “QuickCal
(N991xA/2xA/3xA Only)” on page 125
— Mechanical Cal/ECal – Using mechanical cal standards from a cal kit,
perform an accurate calibration at one or both test ports, adapters, or
jumper cables. Full 2-port mechanical calibration is the most accurate
calibration available with FieldFox. Learn more in “ECal” on page 130.
— User Cal OFF ON – Turns ON and OFF the effects of the user calibration that
you performed. The OFF state reverts to CalReady.
— View Cal – Shows the properties of the current calibration. Learn more in
“View Cal” on page 134.
— More – Learn about Cal Ready Properties in “CalReady” on page 123.
