Keysight N9927-90001 User’s Guide 479
Pulse Measurements Mode – Option 330
Pulse Measurement Settings
Trigger Settings Annotation

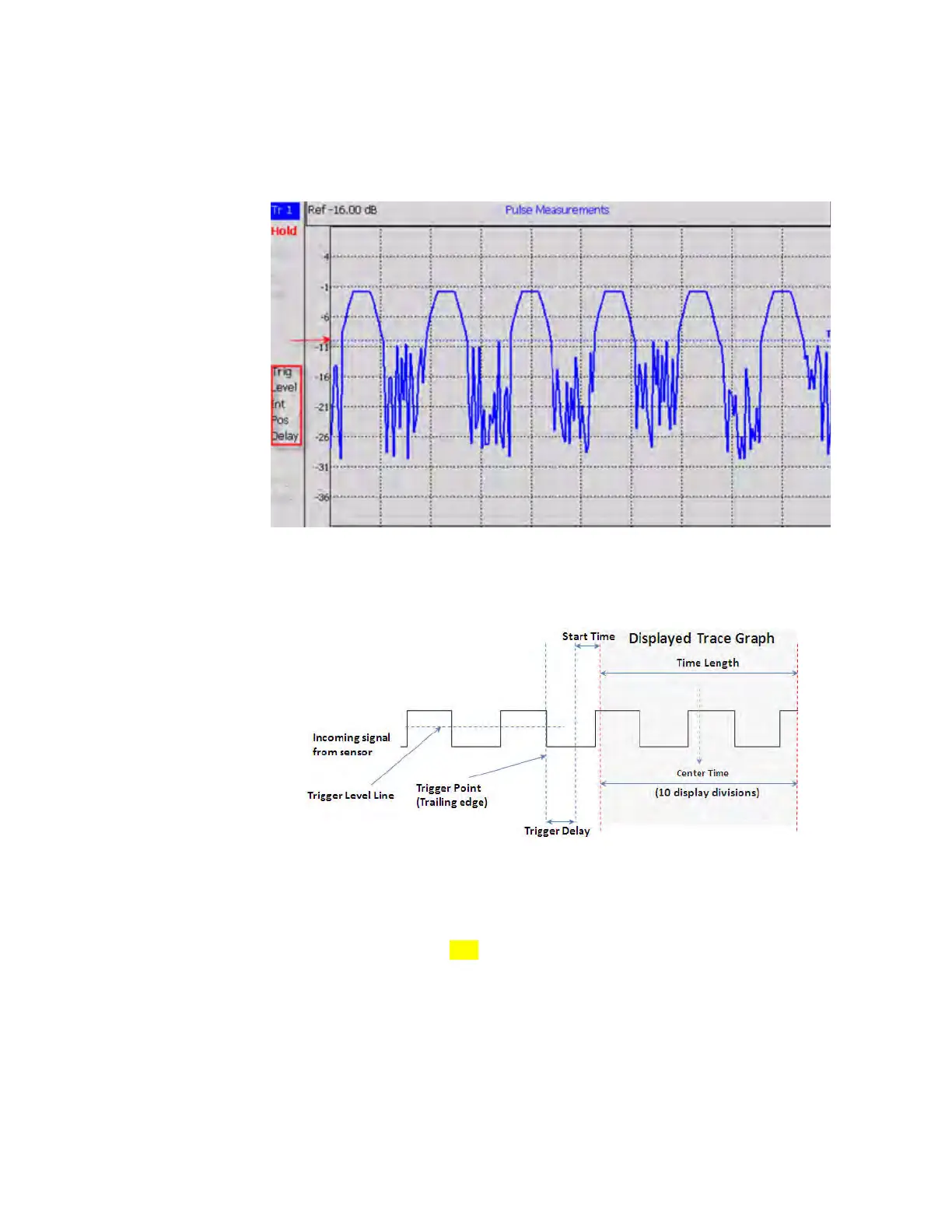

Trigger settings are annotated on the FieldFox screen as highlighted in red in
the following image:
In the previous graphic, the settings are: Trig Level = -10 dBm, Trig Type (Int),
Pos Slope (/), Delay
Marker Settings
Markers are not allowed with Meter-style measurements.
Markers are displayed on Tr 1 and also on the zoom trace if the marker is
within the zoom window time span.
Up to six standard markers can be used to provide readouts of the Y-axis
amplitude at the current X-axis location.
The six standard markers can also be used as Delta Markers.
Learn more about standard markers in “All about Markers” on page 598.
