9 SA (Spectrum Analyzer) Mode
SA Mode measures signals at the SA RF IN connector.
SA Mode measurements require NO calibration.
For a comprehensive SA mode tutorial, see Spectrum Analysis Basics (App
Note 150) at http://literature.cdn.keysight.com/litweb/pdf/5952-0292.pdf
For information on using the FieldFox Remote Viewer which enables you to
view the FieldFox from your iOS device, refer to
http://literature.cdn.keysight.com/litweb/pdf/5991-2938EN.pdf

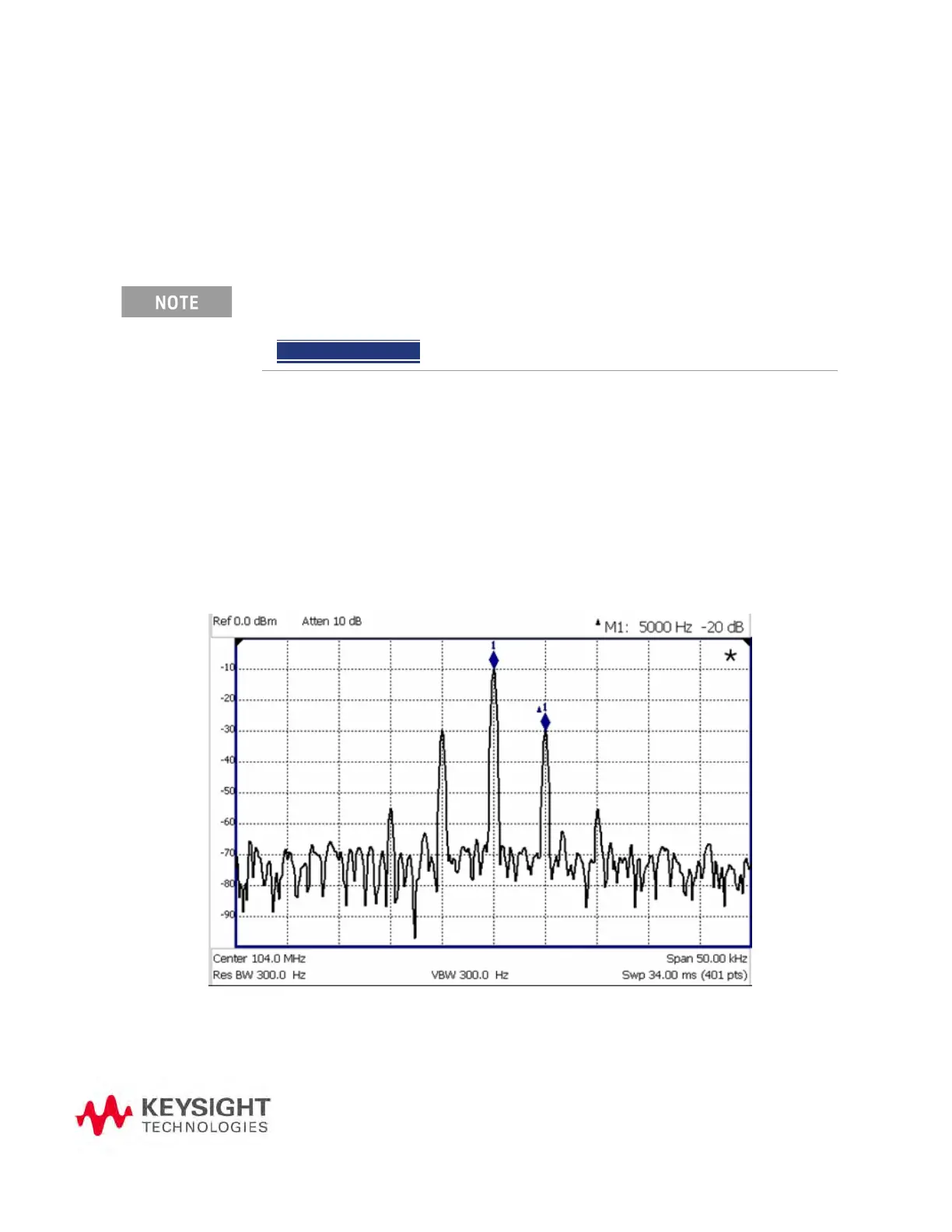

Figure 9-1 SA Display with Markers
The graphic above shows an SA display with markers.
Carrier with 5 kHz frequency modulation and deviation of 1 kHz.
To better reflect the enhancements implemented during the alignment
process, for firmware versions
>A.10.15 "IF Flatness Alignment" is now
referred to as "Channel Equalization" or "Channel Equalization Alignment"
(ChanEQ Alignment
).
