158 Keysight N9927-90001 User’s Guide
SA (Spectrum Analyzer) Mode
SA Mode Settings
— Recall Antenna/Cable Read an existing Antenna/Cable file from the
specified Storage Device.
— Storage Device
Choose from: Internal, USB, SD. Learn more about these
selections in “Set File Type and Select Device” on page 677.
When finished, press Back
to return to the previous menu.
Using the Antenna/Cable Editor
The Antenna Editor and the Cable Editor menus are very similar. Both tables
include header information, and a Frequency/Value table.

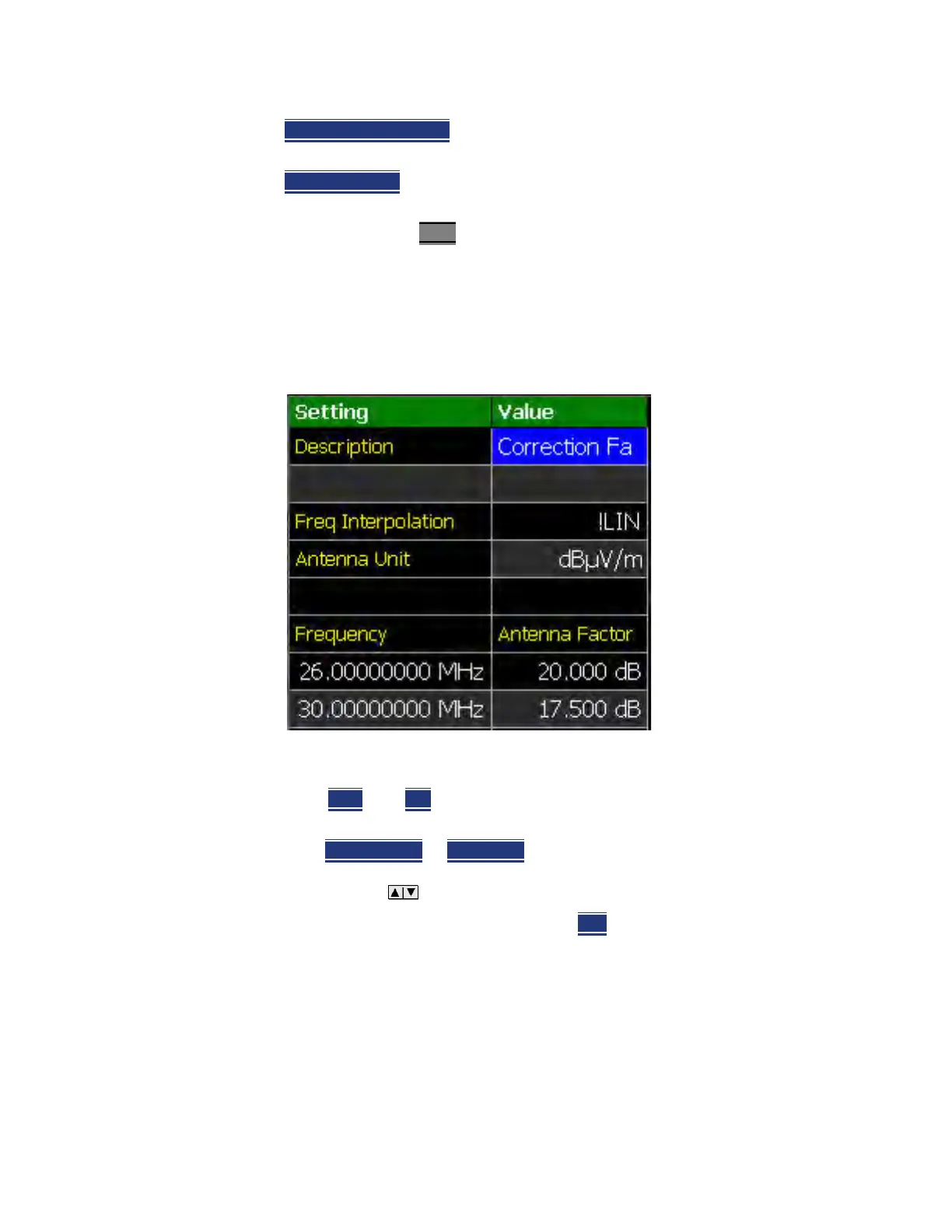

Figure 9-2 FieldFox Antenna Editor
How to use the Antenna/Cable Editor
—Press New then Yes to clear all data from the existing Antenna or Cable
table and reset header information to default settings.
—Then Edit Antenna
or Edit Cable to open the Antenna / Cable Editor.
— Then use the arrows to select a field.
— To edit header information, press Edit
then modify the selected field
using the FieldFox labeler.
——Description: Enter a description for the antenna or cable
correction table. This is NOT the filename used to save the file.
——Antenna Unit (Rcvr-side Antennas only): Units in which the
measurement will be displayed. Select NONE (default setting)
to select from standard SA Units on the Scale menu. Learn how
in “Scale and Units” on page 153.
To Next Page
