Time Domain – Option 010
Time Domain (Transform) Settings
The Window setting applies to ALL traces.
How to make Window setting
—Press Measure Setup 4
—Then Transform
—Then More
—Then Transform Window
— A settings table appears that allows you to navigate and select the
following settings. These settings are made exactly like those made on the
Transform Settings table. Learn how in “Transform Settings Table” on
page 112.
Line Loss and Velocity Factor
By default, the FieldFox does NOT correct Time Domain measurements to
account for the inherent loss of a cable. However, to make more accurate
measurements, Line Loss and Velocity Factor should be considered.
Any of the following four methods can be used to make this same Window
setting. Impulse Width values are calculated from the frequency span and
Kaiser Beta value.

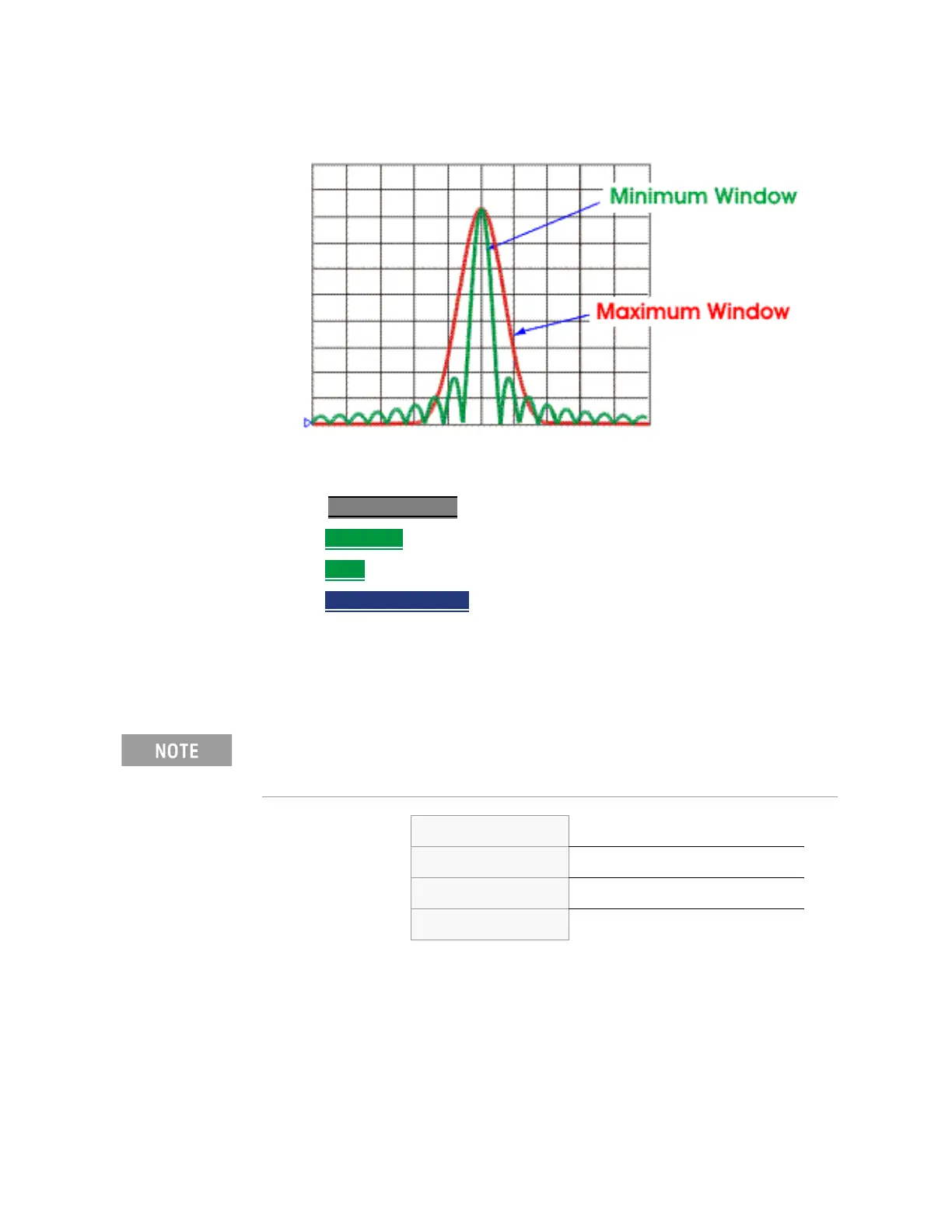

1. Window Min Medium Max
2. Percent 0 50 100
3. Kaiser Beta 0 6.50 13.00
4. Impulse Width 100.455 ps 168.501 231.284
To Next Page
