3 IQ Analyzer (Basic) Mode
3.2 IQ Waveform Measurement
Note that:
–
The IF signal is digitized with the oscilloscope and routed back to the instrument
via the USB3 cable. You must connect this cable to one of the two USB3 Type A
connectors on the instrument’s rear panel. There are other USB ports on the
front and rear panel of some instruments, but Keysight recommends the use of
the USB3 ports on the rear panel, because those are high speed ports. Only
these ports have the SS symbol
–

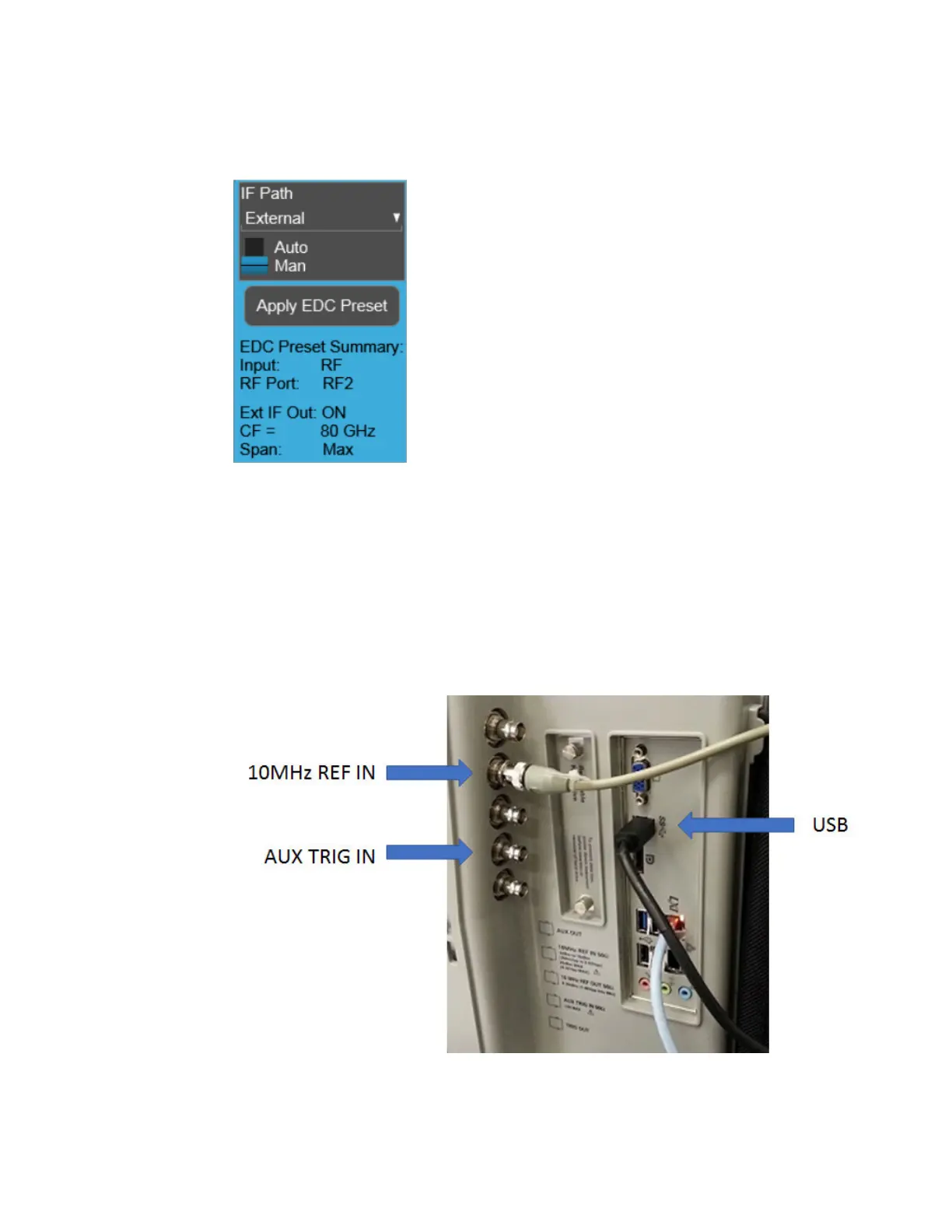

The USB port of the DSOS804A oscilloscope is located on the side panel, as
shown below:
379 IQ Analyzer Mode User's &Programmer's Reference
