KIP 5000 - Rear View

Section 1 Basic Printer Functions 1-8

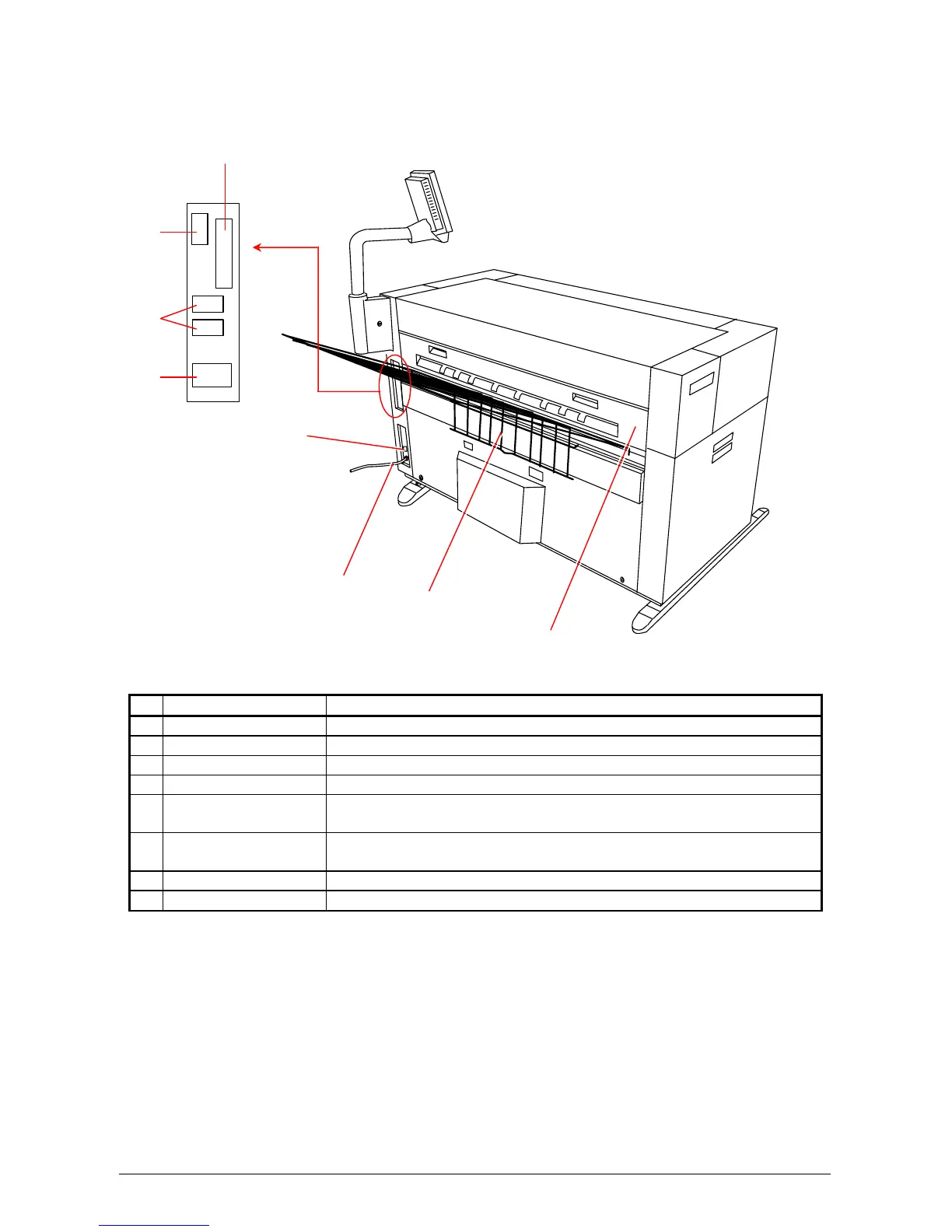

1. 5. 2 Rear view
Name of part Function
1 Exit Cover Open the Exit Cover when you remove mis-fed media.
2 Tray Prints are stacked here after being printed.
3 Power Cable Connect to the outlet.
4 Breaker AC power overload protection.
5 Interface Terminal Connect the scanner cable to this terminal, (included with the KIP
scanner Model 2200 or 2100 )
6 USB connector Connect the scanner cable to this terminal (included with the
KIP600).
7 COM Port Connect the cable from the Optional Folder Device.
8 LAN Port Connect the LAN Cable to connect the KIP5000 to the network.
