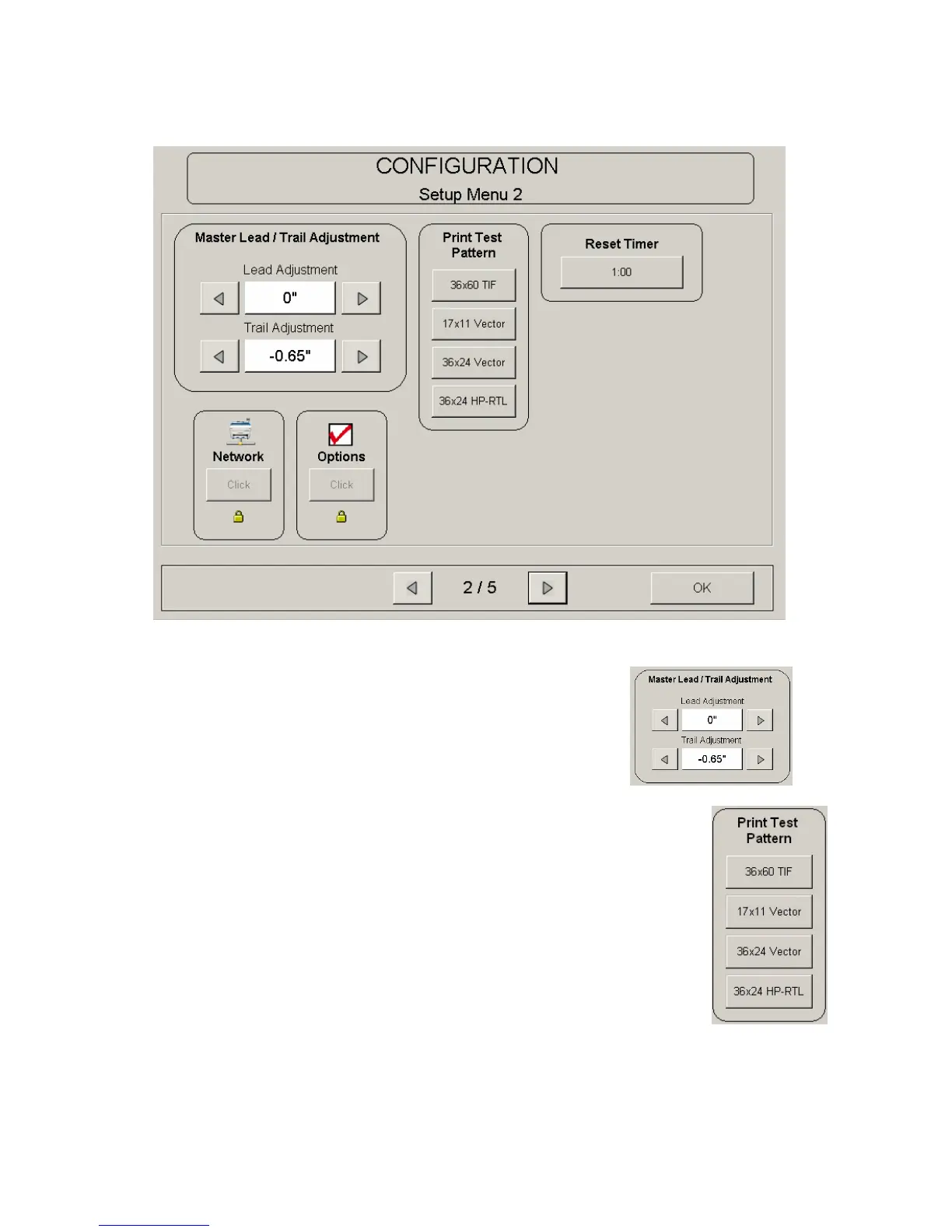

4.4 Master Lead / Trail Adjustment
The leading and trailing edges on scans and copies can be adjusted to
best suit user requirements. This adjustment adds or removes image /
media from all scans and copies and should be considered a default
setting of such.
4.5 Test pattern
A variety of test patterns may be printed from the KIP 5000 operator panel on an
on-demand basis. The following four predefined test patterns are available to
assist in pen table selection and overall quality verification.
36” x 60” tif – Used to test long printing and calibrate scan/copy operations
17” x 11” plt – Used to calibrate lead/trail edge settings
36” x 24” plt – Used to calibrate lead/trail edge settings
36” x 24” hprtl – Used to test output of mixed raster and vector data
