Kurzweil K2600 Series User Manual

5-14
Troubleshooting

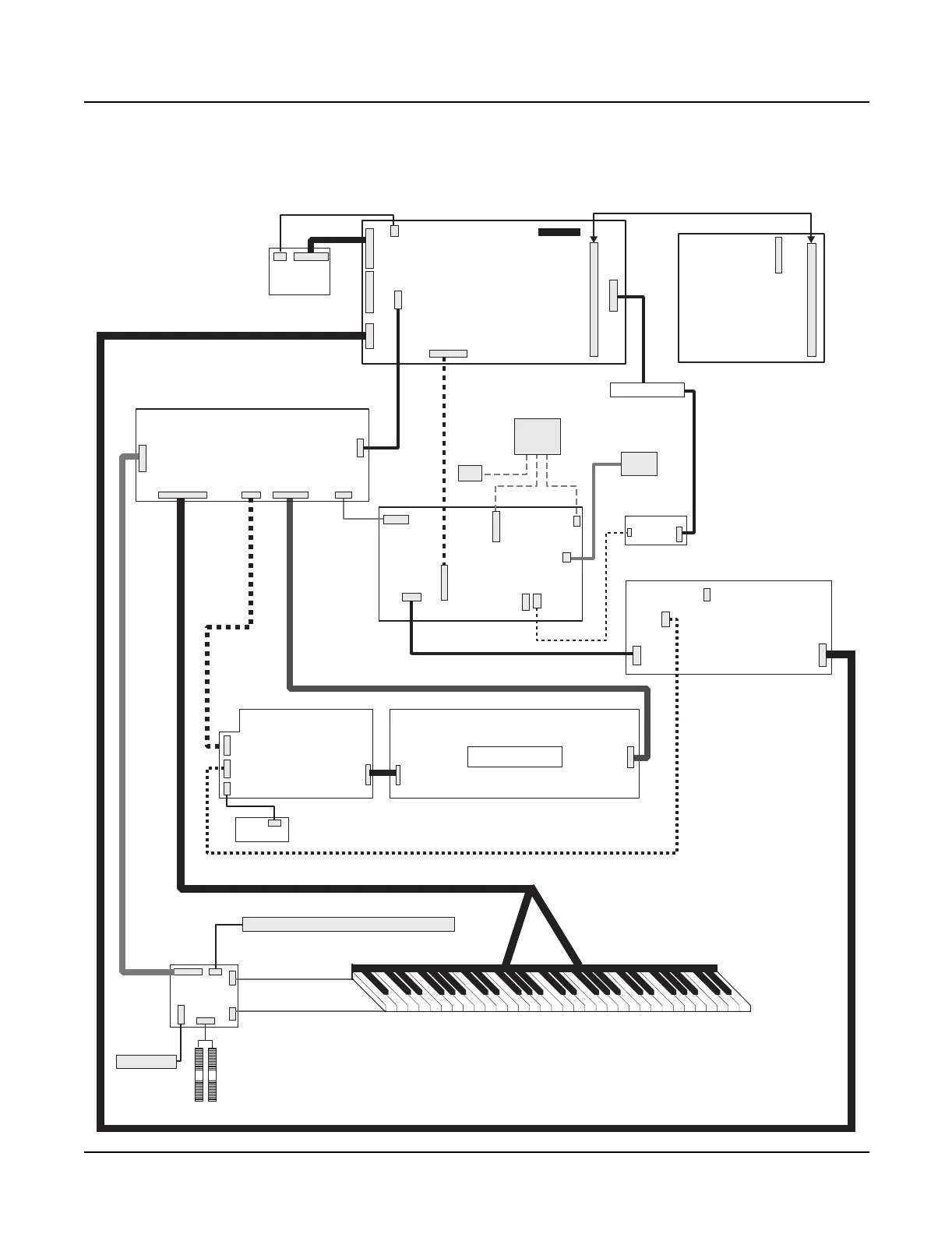

K2600/K2600X Interconnect Diagram
K2600/K2600X Interconnect Diagram
IBBB
BOARD
SLIDER BOARD
J301 Volume
J302 Sliders
J304 IBBB Bridge
J303
Slider
Bridge
FRONT PANEL BOARD
BKLITE
FDD
*Located on back
side of the board.
J812
CPU to
DSP
CPU BOARD
J808
DAC
J813 Scanner
J807 Floppy Pwr
J805 Floppy
J801 Sampler
J804
LCD
J814
DC Power
*J818
DSP BOARD
J901
DSP to
Dig I/O
J602
Audio
Power
J611
Sampler
J601
DAC
AUDIO BOARD
J612
Slider
J102
HDD
Sec
J107
Audio Pwr
J101
SYS Sec
J106
HDD Pwr
J103
Fan
J108
SCNR Pwr
J105
CPU Pwr
J104
Light
POWER SUPPLY
J201
Slider
Bridge
J202
Front
Panel
SUPER RIBBON
J709
Scan Pwr
J704
Keyboard
J702
Slider
J705
Front Panel
J701
Player Control
SCANNER BOARD
J714
CPU
J405
WHEELS
Super Rib
J404, P-Strip-B
J403, P-Strip-W
J406 J401
J402
MINI RIBBON
XFMR
AC
FAN
LCD
J903
CPU to
DSP
J1
J2
PLAYER
CONTROL
BOARD

Kurzweil K2600 Series Specifications

General

Polyphony	48 voices
Multitimbral	16 parts
MIDI	In, Out, Thru
Type	Workstation
Synthesis Method	VAST (Variable Architecture Synthesis Technology)
Keyboard	61, 76, or 88 keys
Sequencer	16-track sequencer
Display	LCD
Sampling	Yes, with optional sampling option
Storage	Floppy disk
Audio Outputs	Stereo outputs
Audio Inputs	Stereo inputs
