Troubleshooting

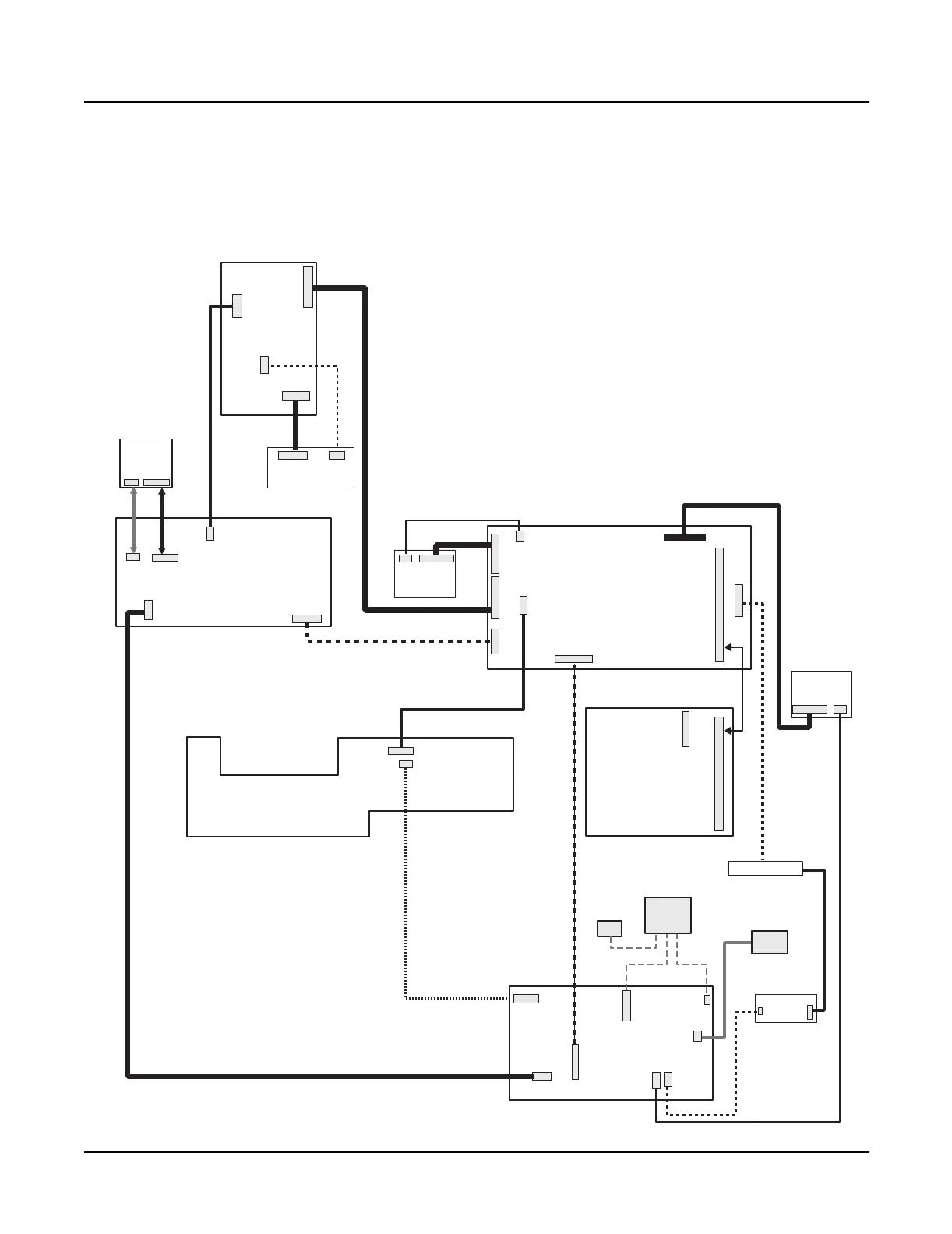

K2600R Interconnect Diagram
5-15
K2600R Interconnect Diagram
The K2600R Interconnect Diagram includes the connections to the Hard Drive, Sampling and
Small Digital I/O Boards.
FDD
*Located on back
side of the board.
J812
CPU to
DSP
CPU BOARD
J808
DAC
J813 Scanner
J807 Floppy Pwr
J805 Floppy
J801 Sampler
J804
LCD
J814
DC Power
*J818
DSP BOARD
J901
DSP to
Dig I/O
J903
CPU to
DSP
J701 Scnr Pwr
J702 CPU
FRONT PANEL/
SCANNER BOARD
BKLITE
J102
HDD
Sec
J107
Audio Pwr
J101
SYS Sec
J106
HDD Pwr
J103
Fan
J108
SCNR Pwr
J105
CPU Pwr
J104
Light
POWER SUPPLY
XFMR
AC
FAN
LCD
J1
J2
PHONES/
VOLUME
J2
J3
J601
DAC
J611
J602
Audio
Power
Sampler
AUDIO
BOARD
J612
Volume
J615
Phones
J1201 J1205
SM DIG I/O
J1108
Audio
J1102
J1103
SMP Dig I/O
J1101
CPU Host
SAMPLER
HDD
