K2600/K2600X Disassembly/Assembly
K2600 Keyboard Assembly
4-21
K2600 Keyboard Assembly
This section describes the removal and replacement of the K2600 (76-note) Keyboard Assembly.
See page 4-28 for the corresponding procedures for the K2600X (88-note) Keyboard Assembly.
Removing the K2600 Keyboard Assembly
The following procedure assumes that the K2600 is open and that you have followed the
instructions on page 4-4 to remove the top enclosure.
The K2600 keyboard is mounted onto a wooden spacer and is secured to the wooden spacer
with 16 screws. The Keyboard Assembly refers to the keyboard and the wooden spacer. The
assembly is secured to the bottom enclosure with eight screws.
Note: The following steps describe the procedure to remove the keyboard from the K2600 and
the wooden spacer to gain access to the keys, contacts, contact boards, and key weights. If you
need to gain access to the keys only (i.e. key replacement), you can do so by following the
procedure described on page 4-23, Disconnecting the K2600 Keyboard.
1. Refer to Figure 4-8. This illustration shows the locations of the keyboard and keyboard
wooden spacer screws. Both sets of screws are accessible from the bottom enclosure.

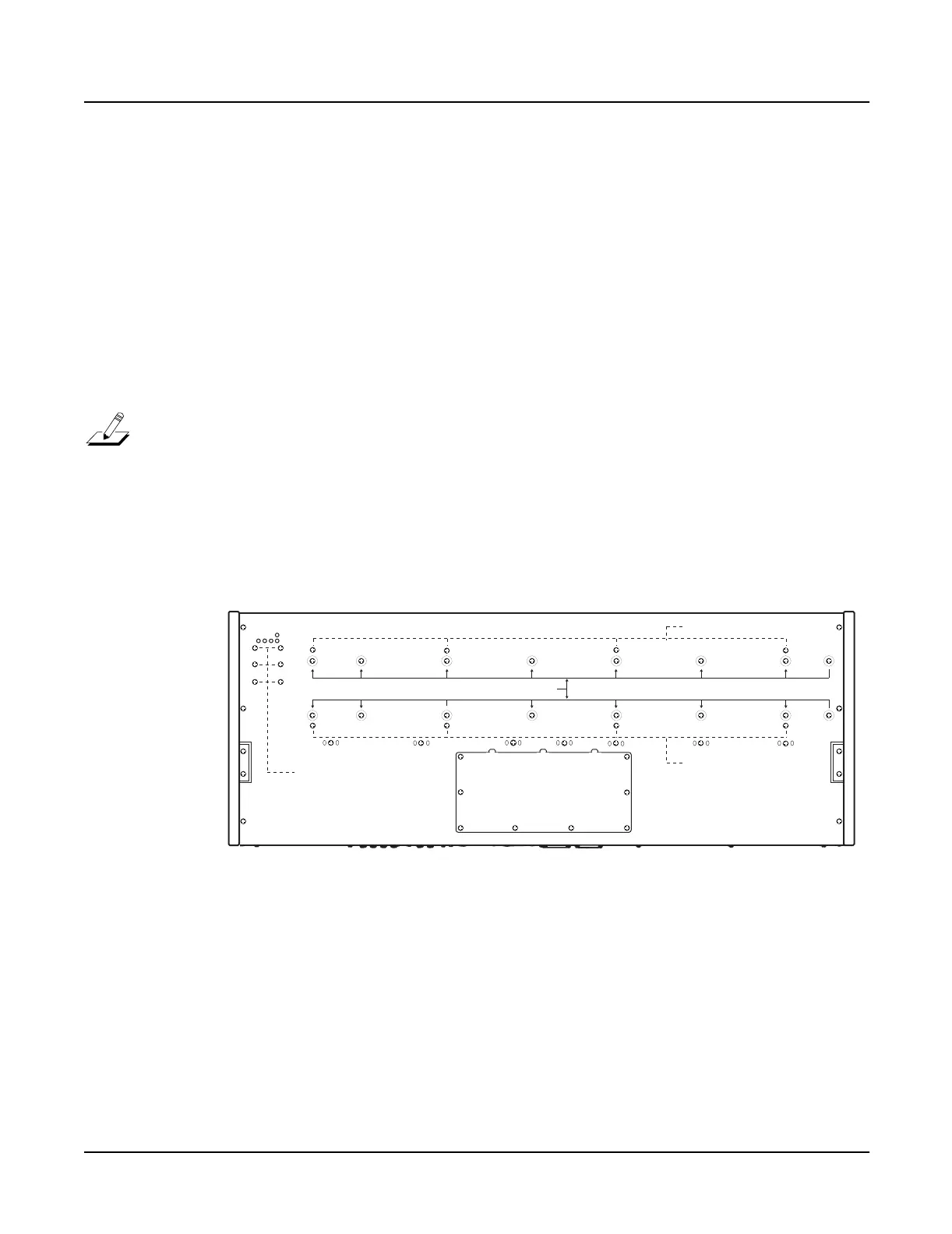

Figure 4-8 K2600 76-note keyboard bottom
2. Tilt the K2600 up and remove the four keyboard rear screws, then lay the K2600 flat on
your work surface.
3. Move the K2600 forward so that the front hangs over the edge of your work surface,
giving you access to the remaining screws.
4. Remove the four keyboard front screws.
5. Remove the four Mod Wheel screws and washers. At this point the keyboard is loose in
the bottom enclosure, but it has cables connected to the Mod Wheel Assembly and the
Keyboard Scanner Board.
keyboard rear screws
front
wooden spacer screws
keyboard front screws
Access panel
Mod Wheel screws
Rear panel
Keyboard
rear
To Next Page
