K2600/K2600X Disassembly/Assembly
K2600 Keyboard Assembly
Removing Keys
The following procedure assumes you have removed the top enclosure from the K2600.
1. Follow the procedure for removing the keyboard (page 4-21) or disconnecting the
keyboard (page 4-23.)
2. The following diagrams illustrate the outlines of the natural and sharp keys and the
locations and functions of the components described in the following procedures.
Natural/White Key

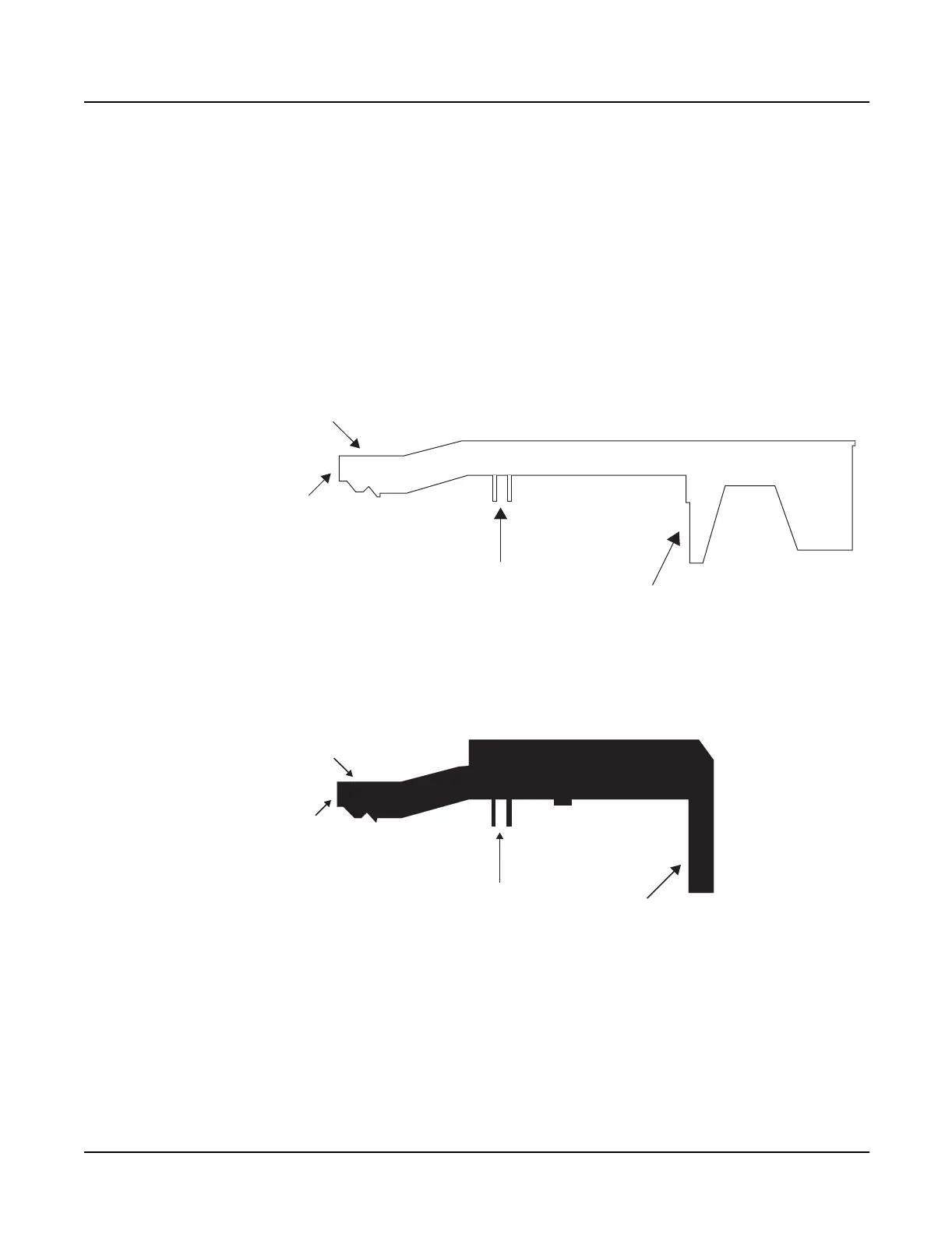

Figure 4-9 Natural/White key, 76-note keyboard
Figure 4-10 Sharp/Black key, 76-note keyboard
Strikes the front and rear key
contact on key depression
Mounts through the
keyboard chassis
Key spring
location
Pivot
location
Strikes the front and rear key
contact on key depression
Mounts through the
keyboard chassis
Key spring
location
Pivot
location
