3-2
K2600R Disassembly/Assembly
Opening the K2600R
Opening the K2600R
Removing the Top Cover
Before you begin disassembly, please be sure that the power is off, and that the AC cord and all
other cables are disconnected.
1. The top cover is secured to the K2600R with ten screws: four screws on each side of the
unit and two screws on the rear.
2. Remove the four screws on the left and four screws on the right side of the top cover.
Notice that the screws positioned closest to the rear panel are shorter.
3. Remove the two screws (use #1 screwdriver) from the upper rear panel edge of the top
cover.
4. The top cover locks into a groove on the Front Panel Assembly. To remove it, lift it and
slide it back toward the rear panel.
5. Place the top cover safely aside to avoid damage.

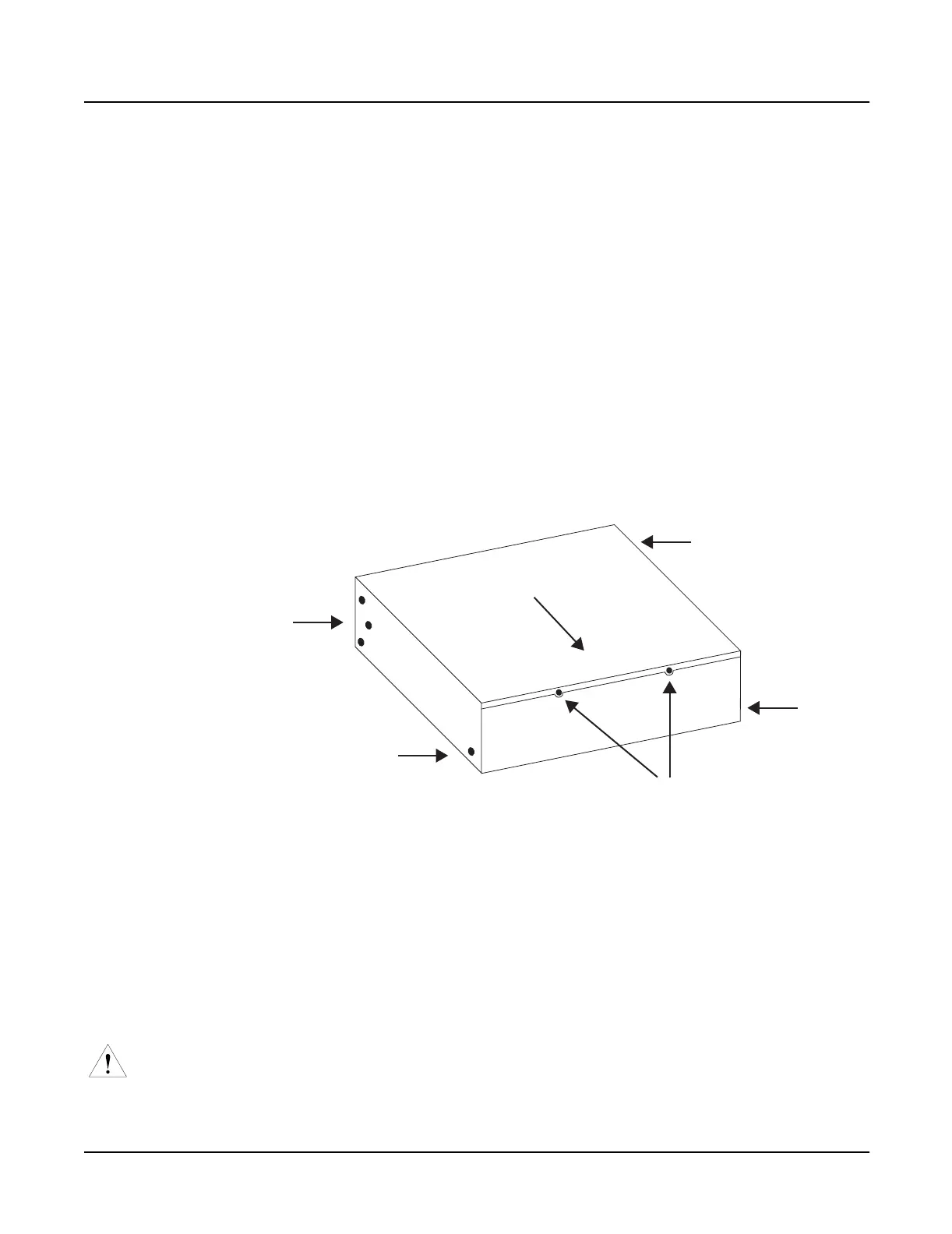

Figure 3-1 K2600R Removing the top cover
Replacing the Top Cover
1. Place the top cover in position and move it toward the Front Panel Assembly to slide it
into the groove on the Front Panel Assembly.
2. Install the four screws on the left and right sides of the top cover.
Caution: Be sure to install the shorter screws closest to the rear panel. Failure to do so
could damage or short out components located near these positions.
3. Install the two screws on the rear panel edge of the top cover.
Remove
screws
Remove
screws
Remove
screws
(shorter)
Remove
screws
(use #1 screwdriver)
Remove
screws
(shorter)
Slide top cover toward rear panel
