K2600/K2600X Disassembly/Assembly
Opening the K2600/K2600X
4-5

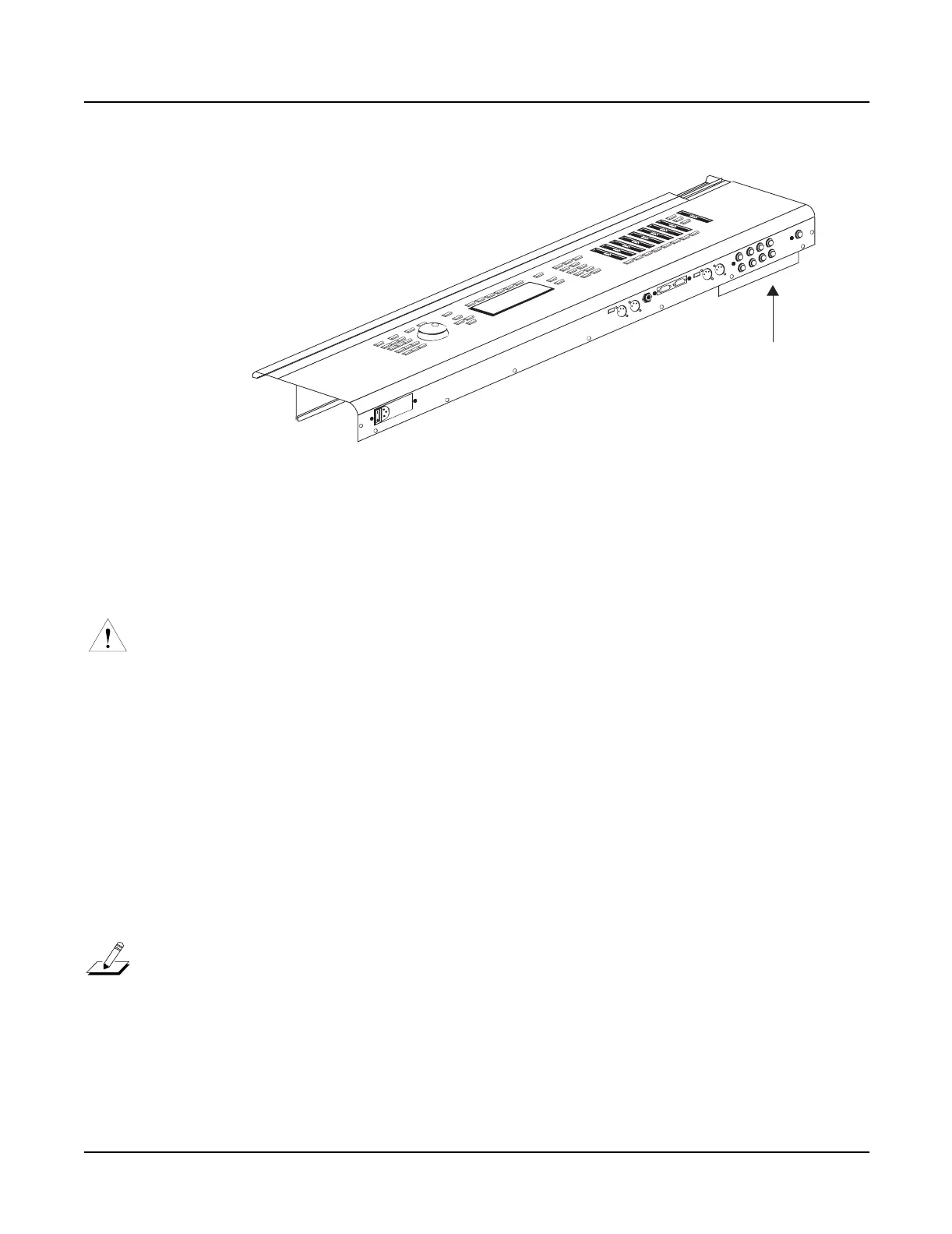

Figure 4-4 Top Enclosure, Audio Board location
6. Turn the top enclosure over and place it face down onto your work surface.
Replacing the Top Enclosure
1. Lift the top enclosure up and place it in position over the bottom enclosure.
Caution: Remember that the Audio Board extends beyond the rear panel.
2. Be sure that the cables are properly routed and are not caught between the rear panel or
enclosure support wall.
3. Refer to Figure 4-3 and install the seven rear panel screws.
Closing the K2600/K2600X
1. Refer to Figure 4-2. Slide one side of the unit off of your surface and hold the appropriate
endblock in position. Install the three endblock screws in the bottom enclosure. Repeat for
the other endblock.
2. Install the four endblock screws in the rear panel.
3. Tilt the unit up and install the enclosure support wall screws.
Note: If you are servicing a K2600, there are seven screws securing the enclosure support
wall. If you are servicing a K2600X, there are eight screws.
4. Insert one endblock locking bracket and install the two endblock locking bracket screws.
Repeat for the other endblock locking bracket.
Audio Board
