K2600/K2600X Disassembly/Assembly
Opening the K2600/K2600X
Opening the K2600/K2600X
K2600 Bottom
1. Refer to Figure 4-1. Remove the enclosure support wall screws and the endblock locking
bracket screws (not the endblock screws). Dotted lines indicate the locations of the
enclosure support wall screws. Arrows show the locations of the endblock locking bracket
screws.
Note: Do not remove the five endblock screws at this point.
2. Tilt the K2600 up and remove the seven enclosure support wall screws. These attach the
support wall to the bottom enclosure.
3. Remove the four endblock locking brackets screws (two on each side of the bottom
enclosure).
4. Slide the endblock locking brackets out of the K2600 and set them aside.
Note: The left and right endblock locking brackets are identical. Therefore, you don’t
need to keep them separate.

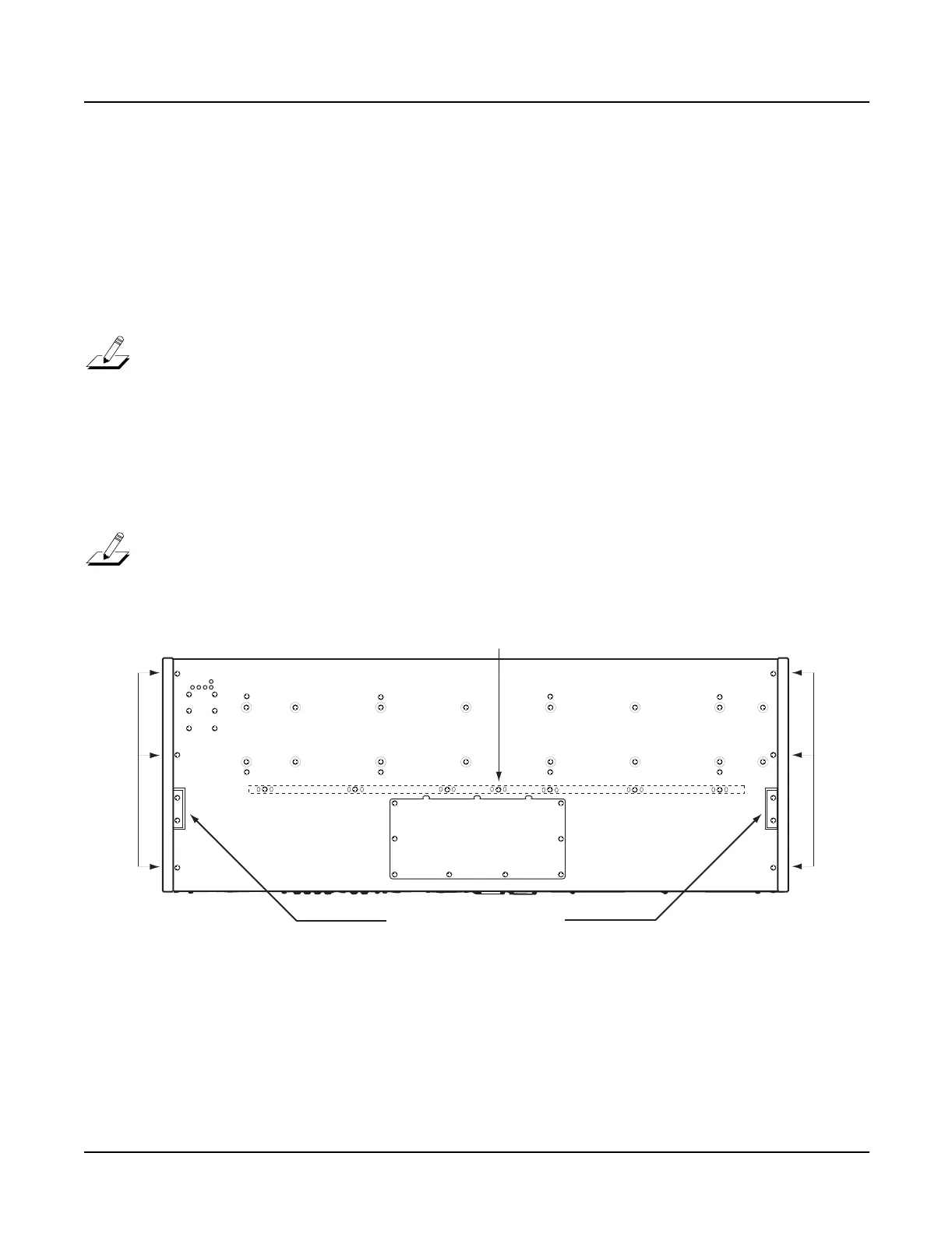

Figure 4-1 K2600 bottom enclosure
5. Place the K2600 flat on your work surface.
Keyboard
Enclosure support wall screws
Endblock locking bracket screws
Rear panel
Endblock screws
Endblock screws
Access panel
