K2600/K2600X Disassembly/Assembly
Top Enclosure
Top Enclosure
The top enclosure includes five boards: Audio, Slider, Control Panel, LCD, and Backlight. The
Disk Drive and the Power Entry Module are also located on the top enclosure. Figure 4-5 shows
the placement of the boards, Disk Drive, and Power Entry Module. Figure 4-6 shows the top
enclosure with the Digital I/O and Sampling Boards installed.

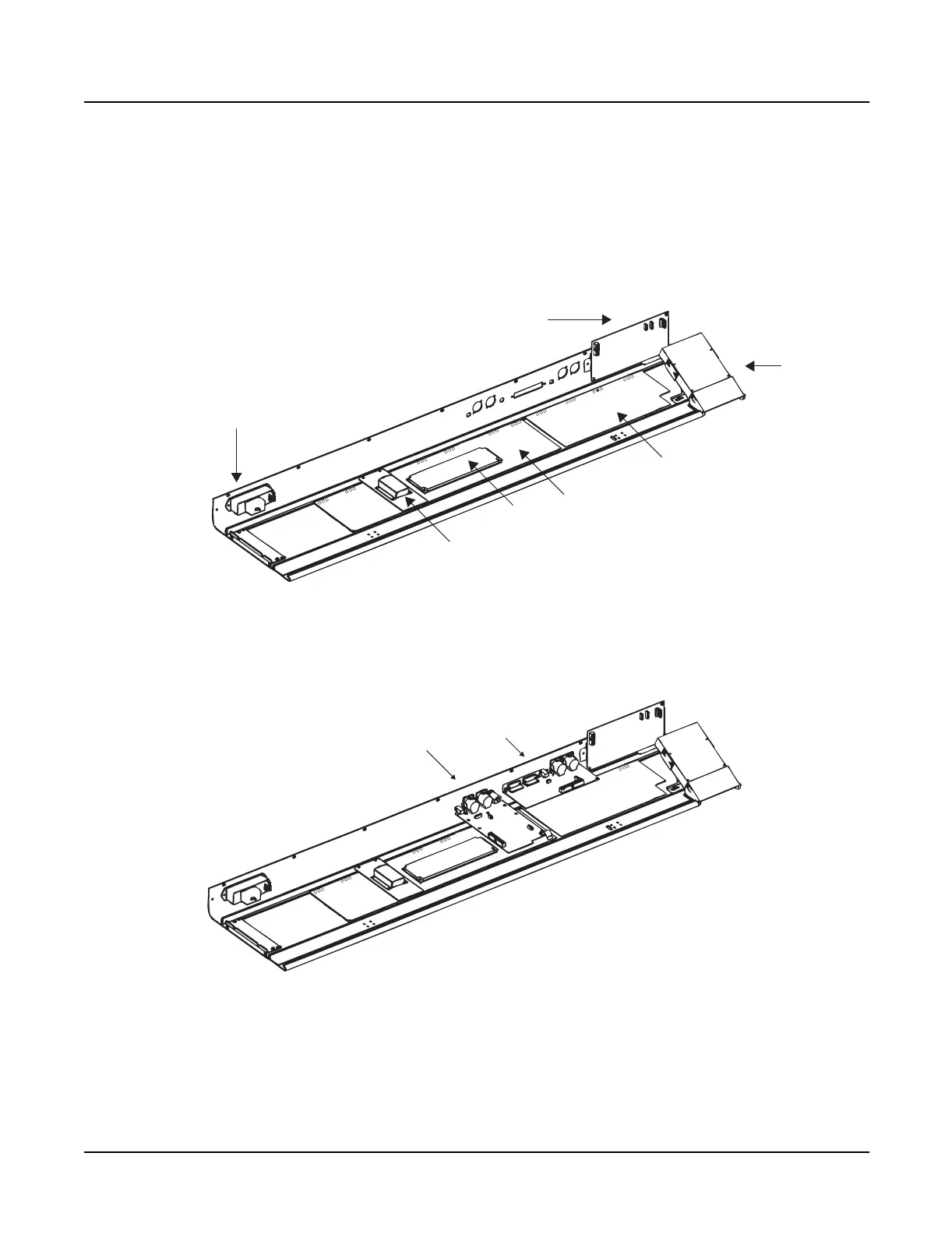

Figure 4-5 Top Enclosure, boards and assemblies
Figure 4-6 Top Enclosure, option boards
Slider
Backlight
LCD
Power Entry
Module
Audio
Front Panel
Disk Driv
Sampling
Digital I/O
