To connect signal cables for the front backplane(s), refer to the following cable routing scenarios depending
on your server configuration.
•
“Front backplanes: 24 x 2.5" SAS/SATA” on page 363
• “Front + rear backplanes: 24 x 2.5" SAS/SATA + 4 x 2.5"/8 x 2.5" SAS/SATA/4 x 2.5" AnyBay” on page
365
• “Front + middle backplanes: 24 x 2.5" SAS/SATA + 4 x 2.5"/8 x 2.5" SAS/SATA” on page 385
• “Front + middle + rear backplanes: 24 x 2.5" SAS/SATA + 8 x 2.5" SAS/SATA+ 4 x 2.5"/8 x 2.5" SAS/
SATA” on page 389
Front backplanes: 24 x 2.5" SAS/SATA
This topic provides cable routing information for the server model with three 8 x 2.5-inch SAS/SATA front
backplanes.
•
“32i RAID adapter” on page 363
• “8i RAID/HBA adapters” on page 364
• “8i + 16i RAID/HBA adapters” on page 365
32i RAID adapter

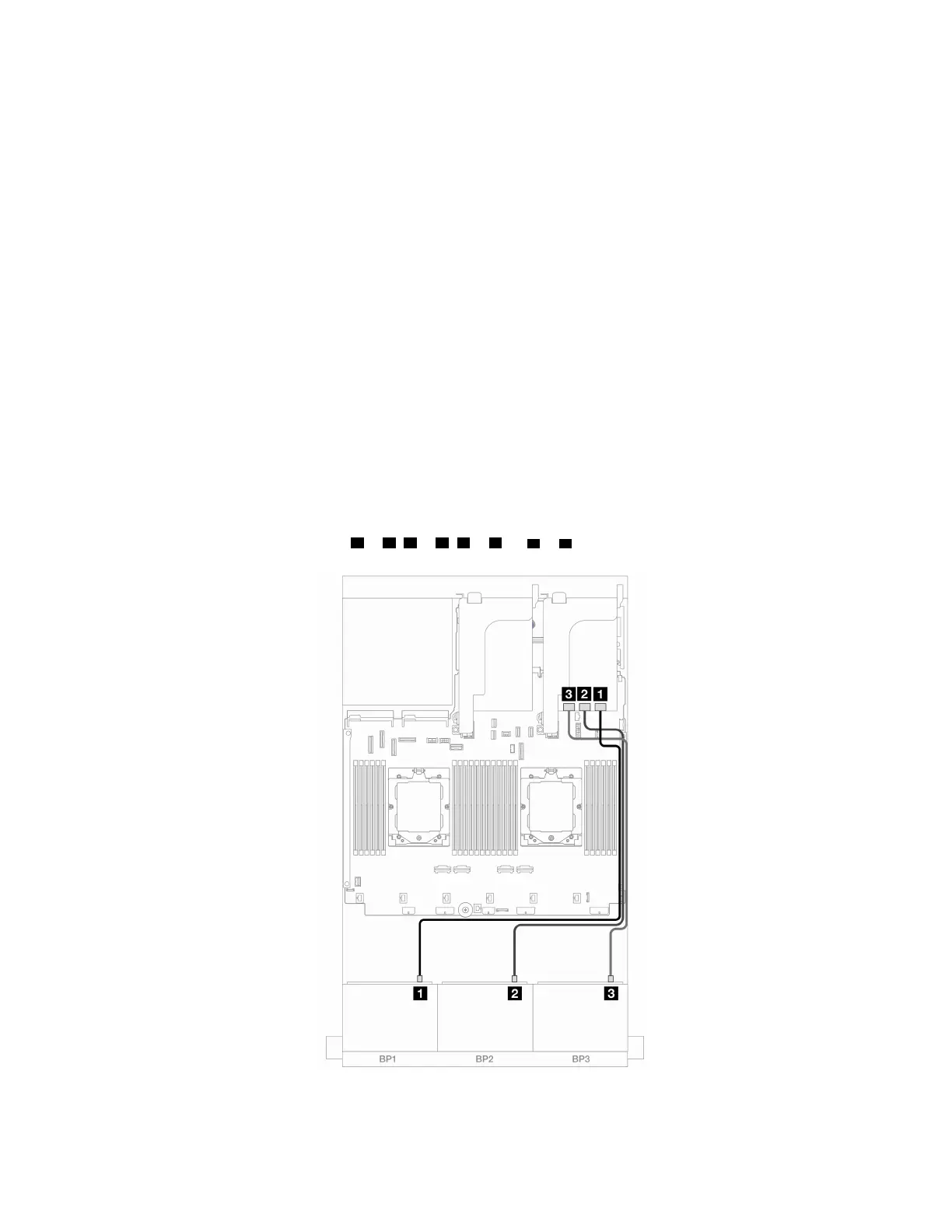

The following shows the cable connections for the 24 x 2.5-inch SAS/SATA configuration with one 32i RAID
adapter.
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
Figure 372. SAS/SATA cable routing to 32i adapter
Chapter 6. Internal cable routing 363
