• “Onboard connectors” on page 443
• “16i RAID/HBA adapter” on page 444
Onboard connectors
This topic provides cable routing information for the front 12 x 3.5-inch SAS/SATA + rear 2 x 3.5-inch/4 x 3.5-
inch SAS/SATA configuration with onboard connectors.
The following uses the 2 x 3.5-inch SAS/SATA rear backplane as an example for illustration. The cable
routing for the 4 x 3.5-inch SAS/SATA rear backplane is similar.
Connections between connectors:
1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n
Front backplane cable routing

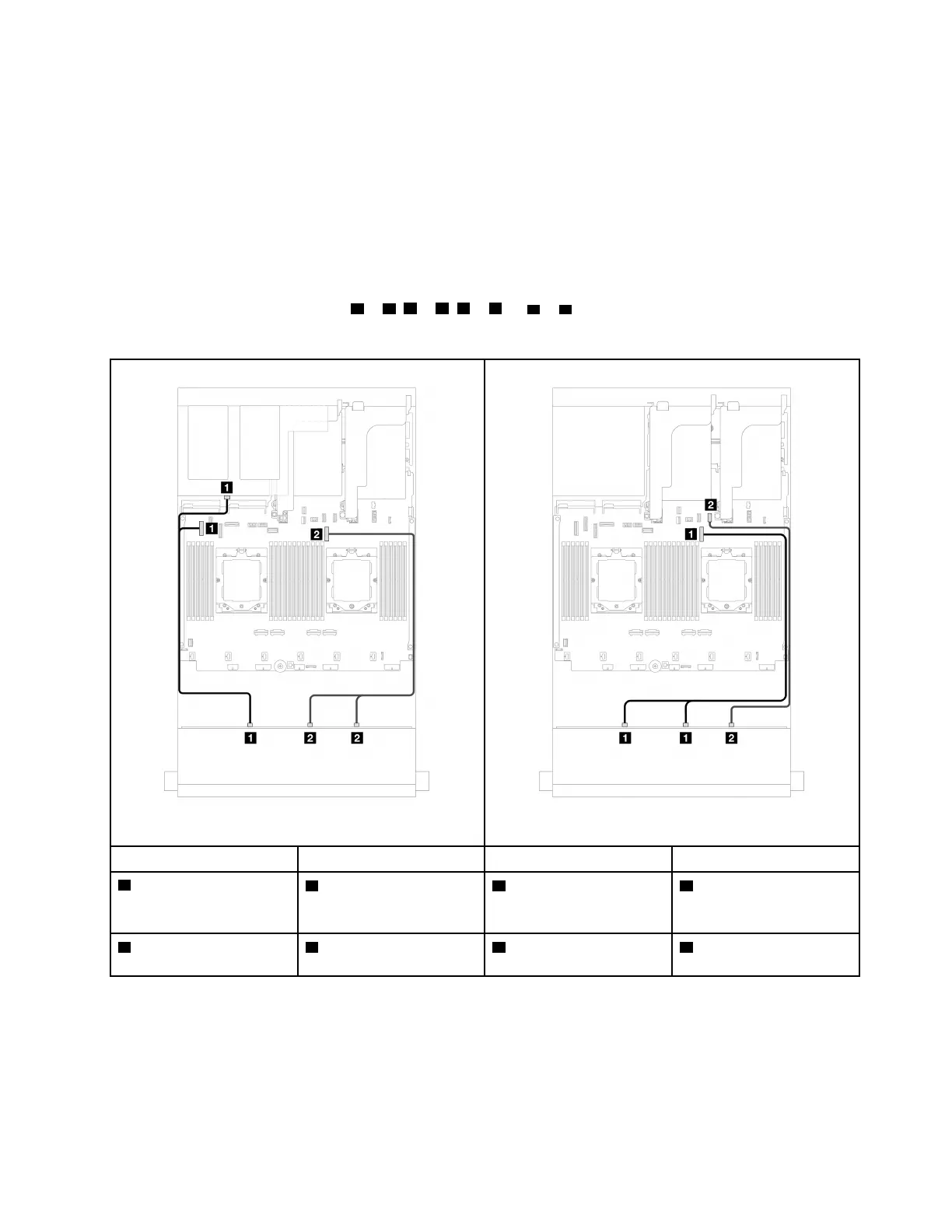

Figure 482. Cable routing when two processors installed Figure 483. Cable routing when one processor installed
From To From To
1
• Backplane 1: SAS 0
• Backplane 4: SAS
1 Onboard: PCIe 5 1 Backplane 1: SAS 0,
SAS 1
1 Onboard: PCIe 9
2 Backplane 1: SAS 1,
SAS 2
2 Onboard: PCIe 9 2 Backplane 1: SAS 2 2 Onboard: PCIe 11
Chapter 6. Internal cable routing 443
