Lexmark MS610 Series Service Manual

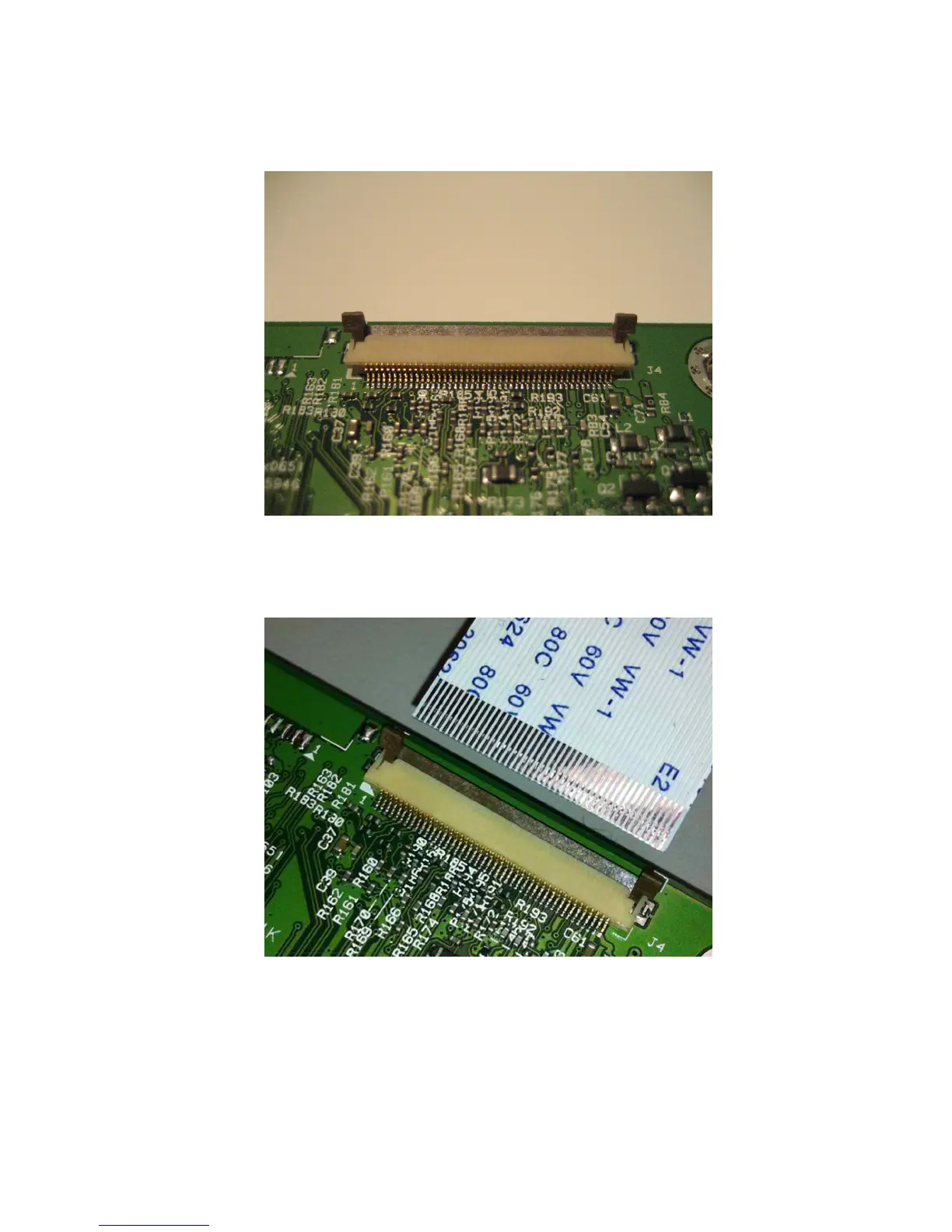

Inserting a cable into the horizontal top contact connector
1
When installing the cable, check the locking actuator to ensure it is in the unlocked position. The tabs on the ends
of the actuator are vertical when the actuator is unlocked.
2 Insert the cable with the contacts on the cable facing up. Insert the cable on top of the actuator.
Note: Verify that the cable is installed squarely into the connector. If the cable is not squarely installed, then
intermittent failures could occur.
4514-630, -635, -636
Repair information
151

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
