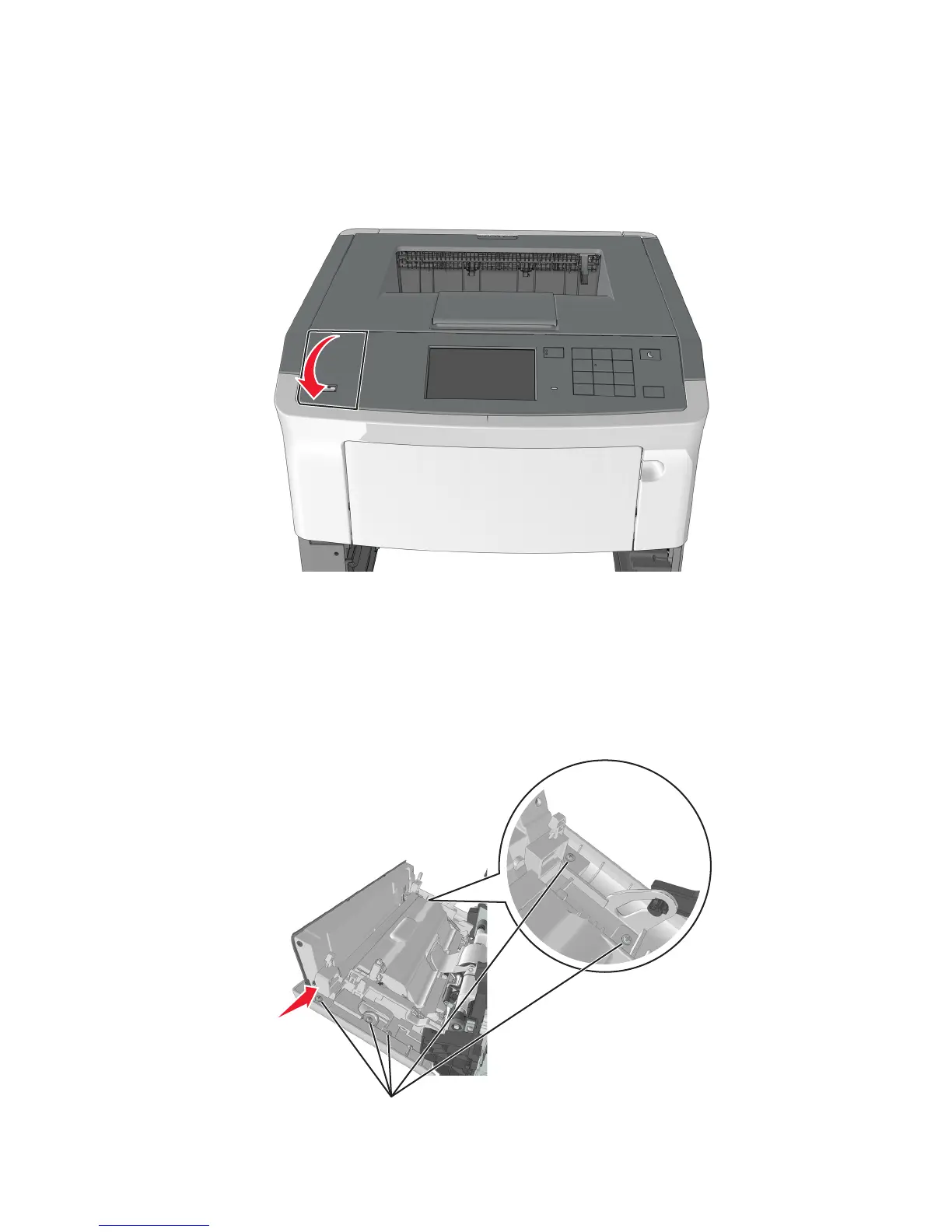

Bezel removal (MS610de)

1 Open the front door.

2 Pull to remove the bezel.

Nameplate removals

Nameplate removal (MS510dn and MS610dn)

1 Open the front door.

2 Remove five screws (A) securing the nameplate.

A

4514-630, -635, -636

Repair information

199
