Pick/Lift motor gearbox removal
1 Remove the left cover. See “Left cover removal” on page 166.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.
3 Remove the power supply. See “Power supply removal” on page 223.
4 Remove the power supply shield. See “Power supply shield removal” on page 225.
5 Remove the duplex. See “Duplex removal” on page 226.
6 Remove the ACM assembly. See “ACM assembly removal” on page 233.
7 Position the printer so that it sits on its left side.

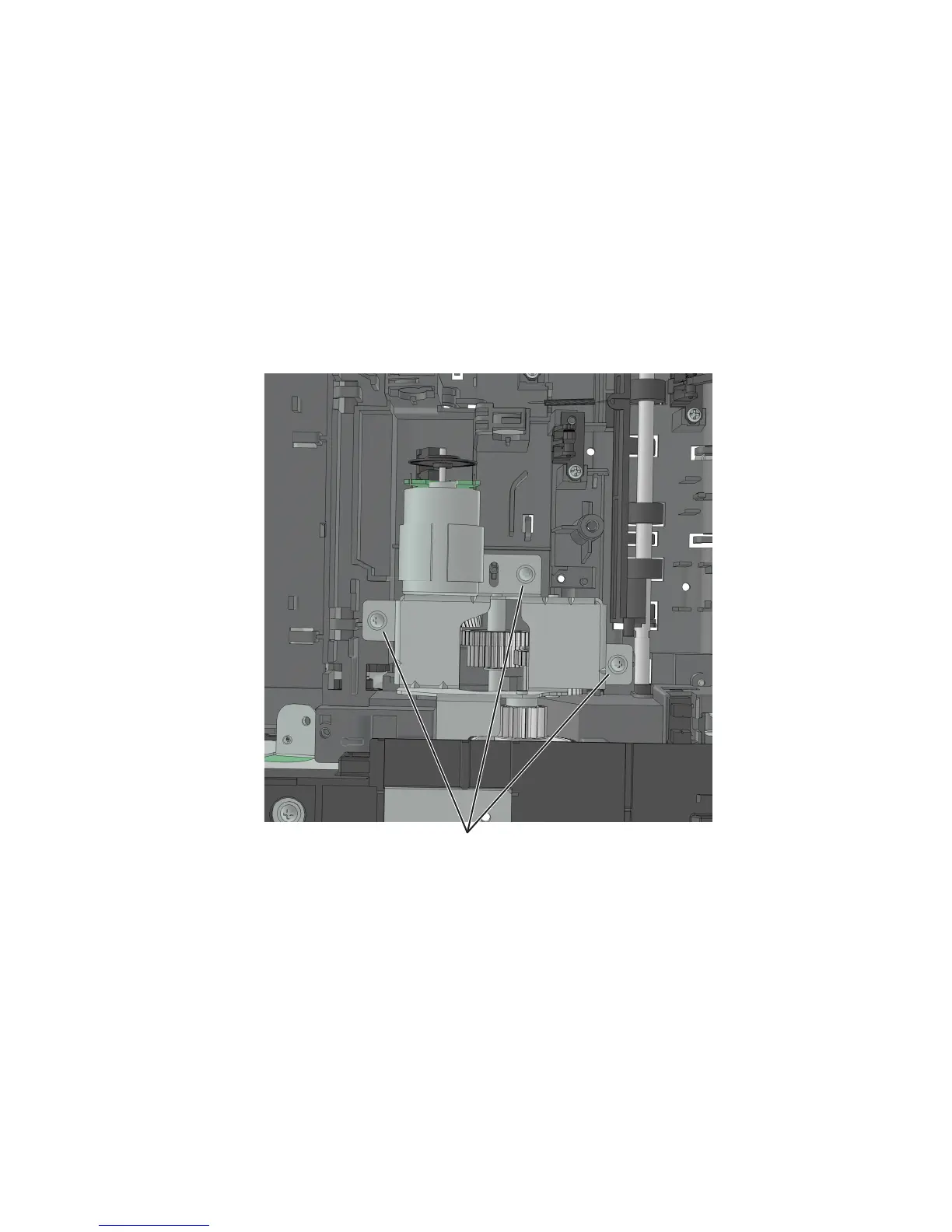

8 Remove the three screws (A).
A
9 Disconnect the cable from the pick/lift motor gearbox.
4514-630, -635, -636
Repair information
239
