Lexmark MS610 Series Service Manual

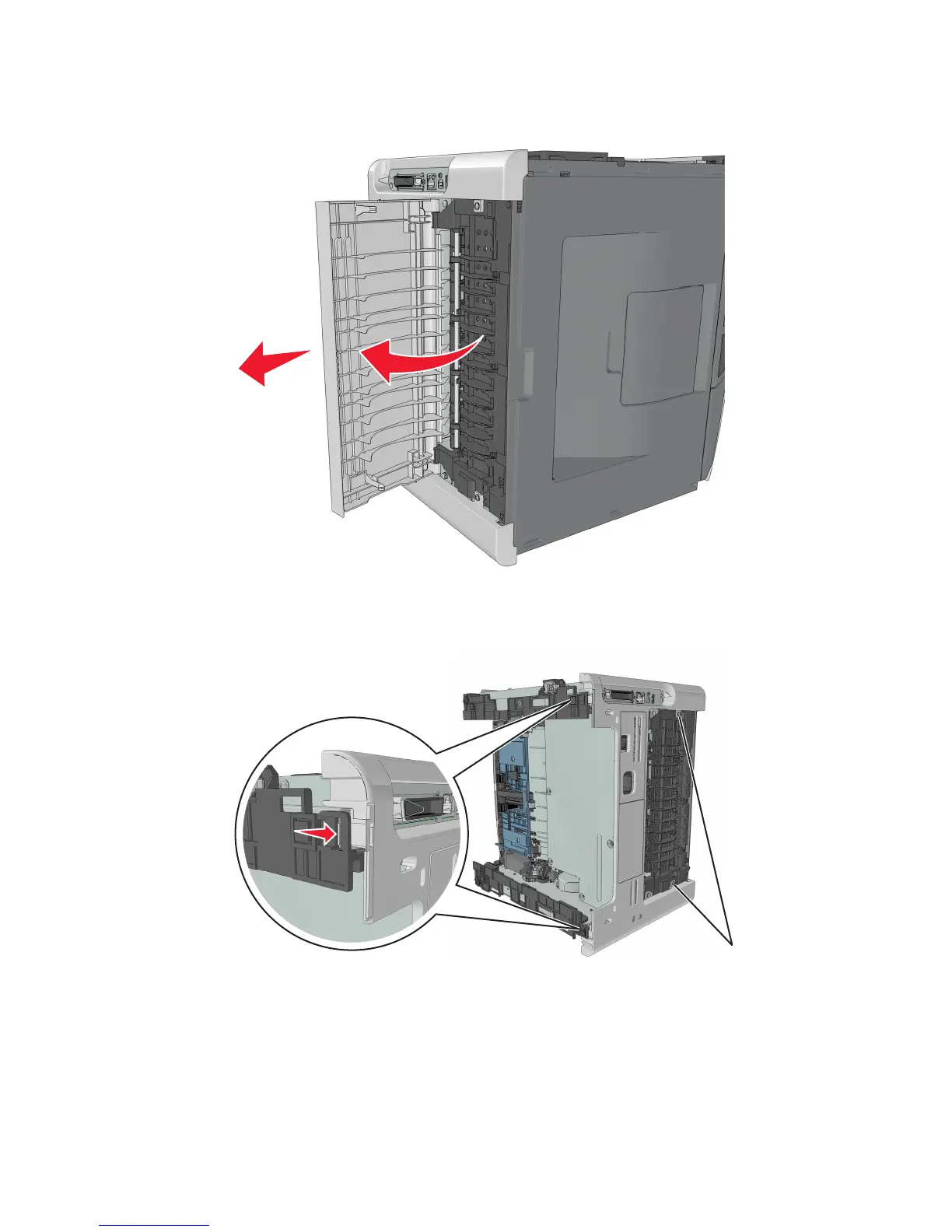

3 Pull the rear door to remove.
4 Remove the two screws (A) securing the rear cover.
5 Press the two latches to release the rear cover.
A
Narrow media/bin full sensor removal
1 Remove the right cover. See “Right cover removal” on page 178.
2 Remove the left cover. See “Left cover removal” on page 166.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 240.
4514-630, -635, -636
Repair information
241

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
