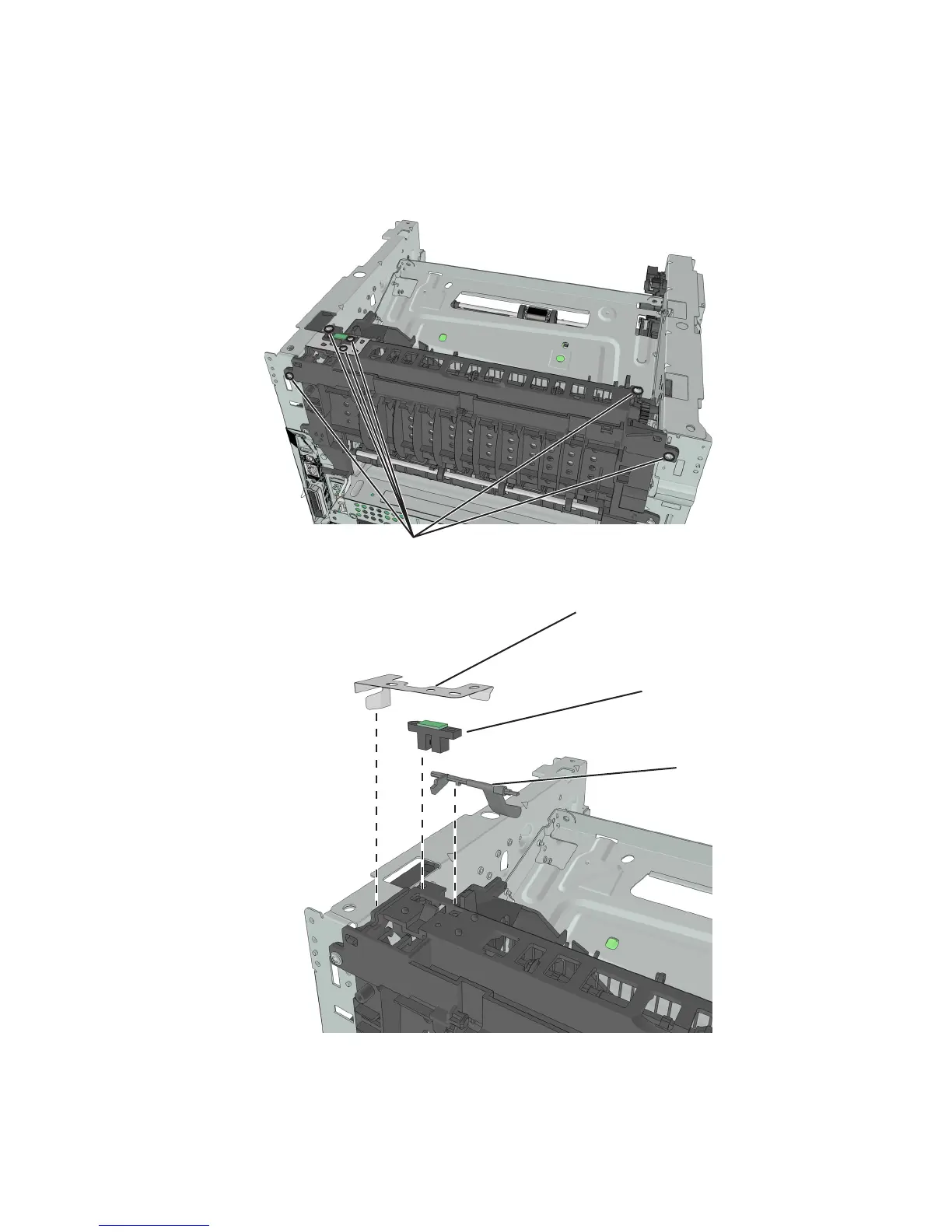

4 Remove the top cover. See “Top cover removal” on page 245.

5 Disconnect the cable JNRW1 from the controller board.

6 Remove the six screws (A) securing the sensor and upper exit guide to the redrive assembly.

A

7 Remove the ground (B), sensor (C), and sensor flag (D).

B

C

D

4514-630, -635, -636

Repair information

242
