Lexmark MS610 Series Service Manual

Cooling fan duct removal
Note: This is not a FRU.
1 Remove the right cover. See “Right cover removal” on page 178.

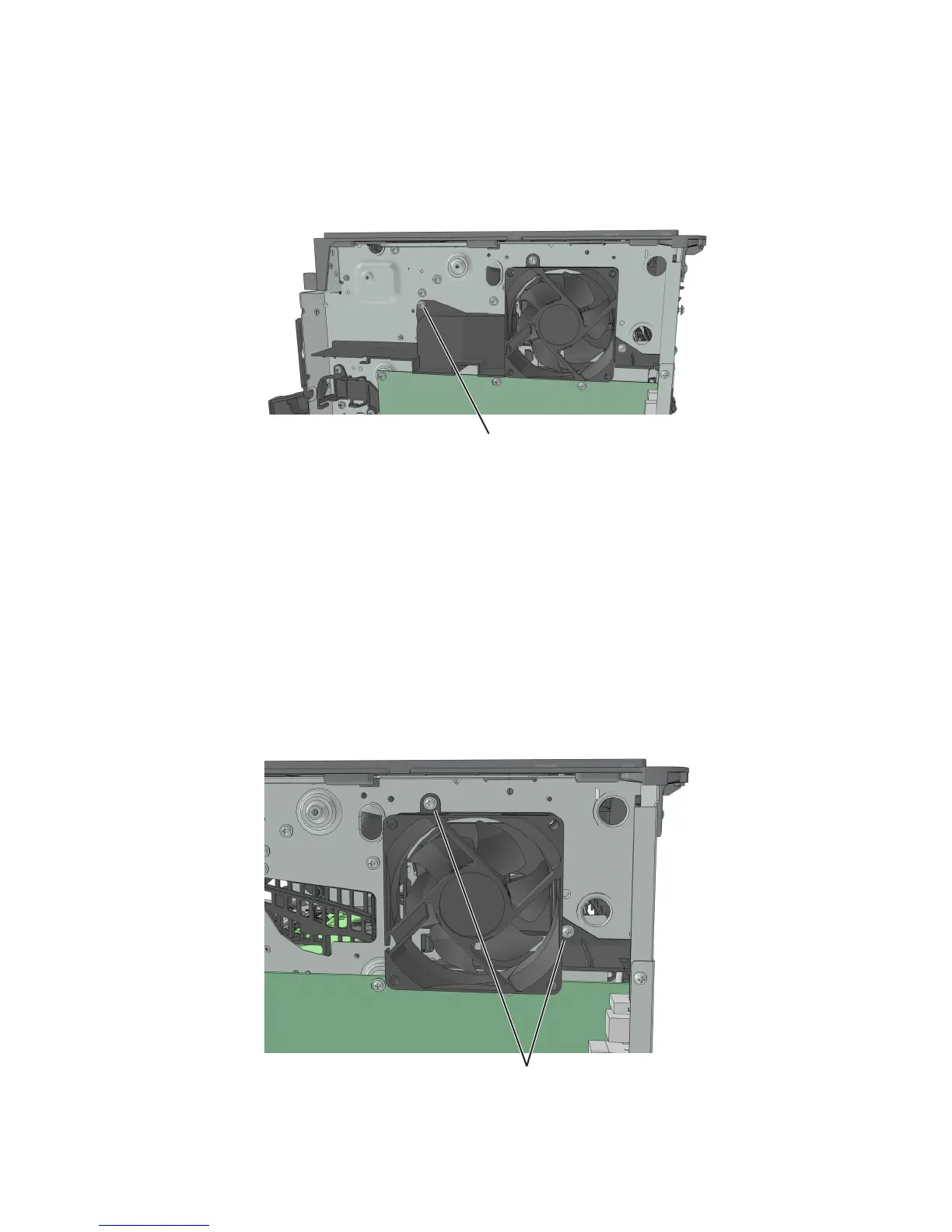

2 Remove the screw (A), and then remove the cooling fan duct.
A
Cooling fan removals
Cooling fan removal (MS510dn and MS610dn)
1 Remove the right cover. See “Right cover removal” on page 178.
2 Remove the cooling fan duct. See “Cooling fan duct removal” on page 180.
3 Disconnect the cable JFAN1 from the controller board.
4 Remove the two screws (A), and then remove the fan and the fan mount.
A
4514-630, -635, -636
Repair information
180
