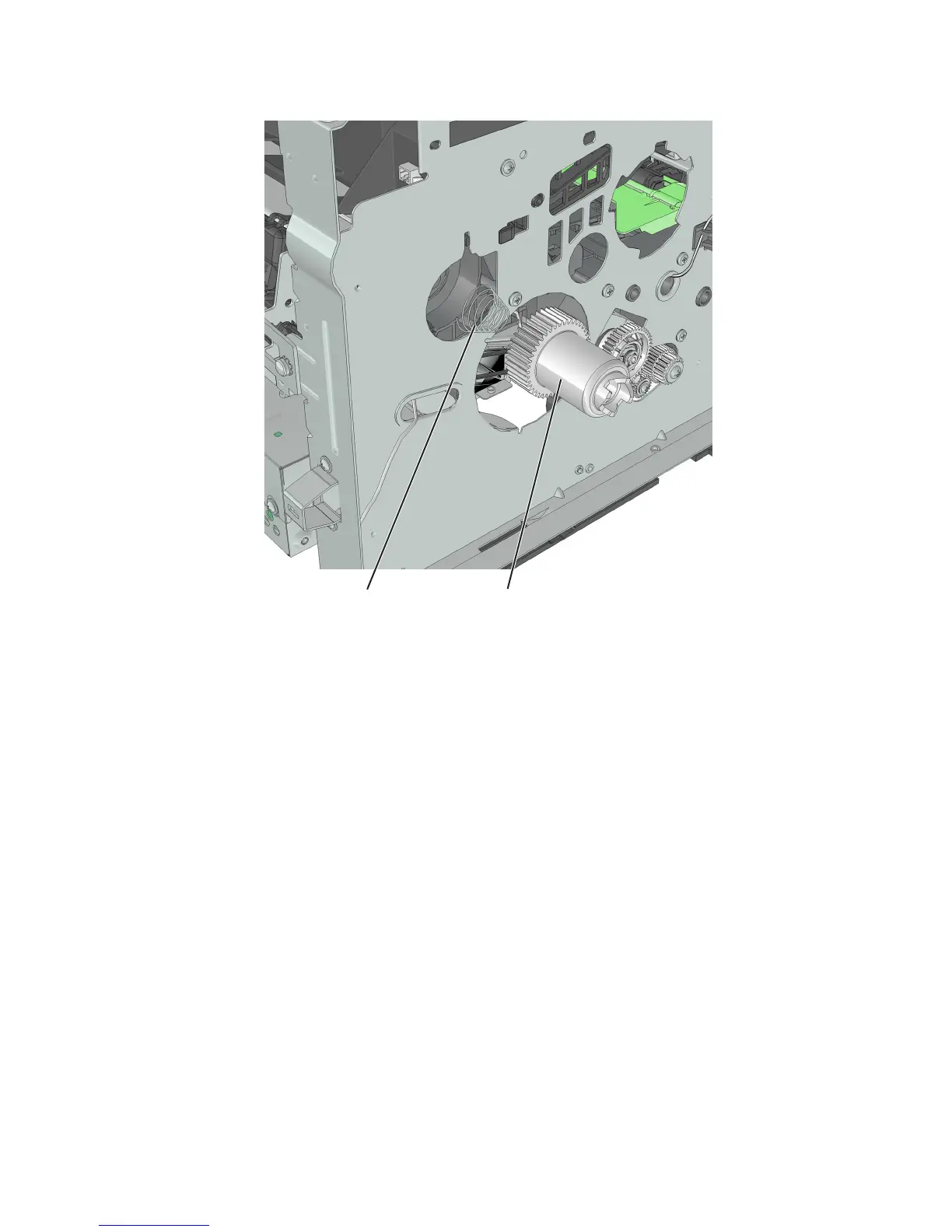

5 Remove the spring (B) and the fuser gear (C).

BC

MPF solenoid removal

1 Remove the left cover. See “Left cover removal” on page 166.

2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 167.

3 Remove the screw (A).

4514-630, -635, -636

Repair information

169
