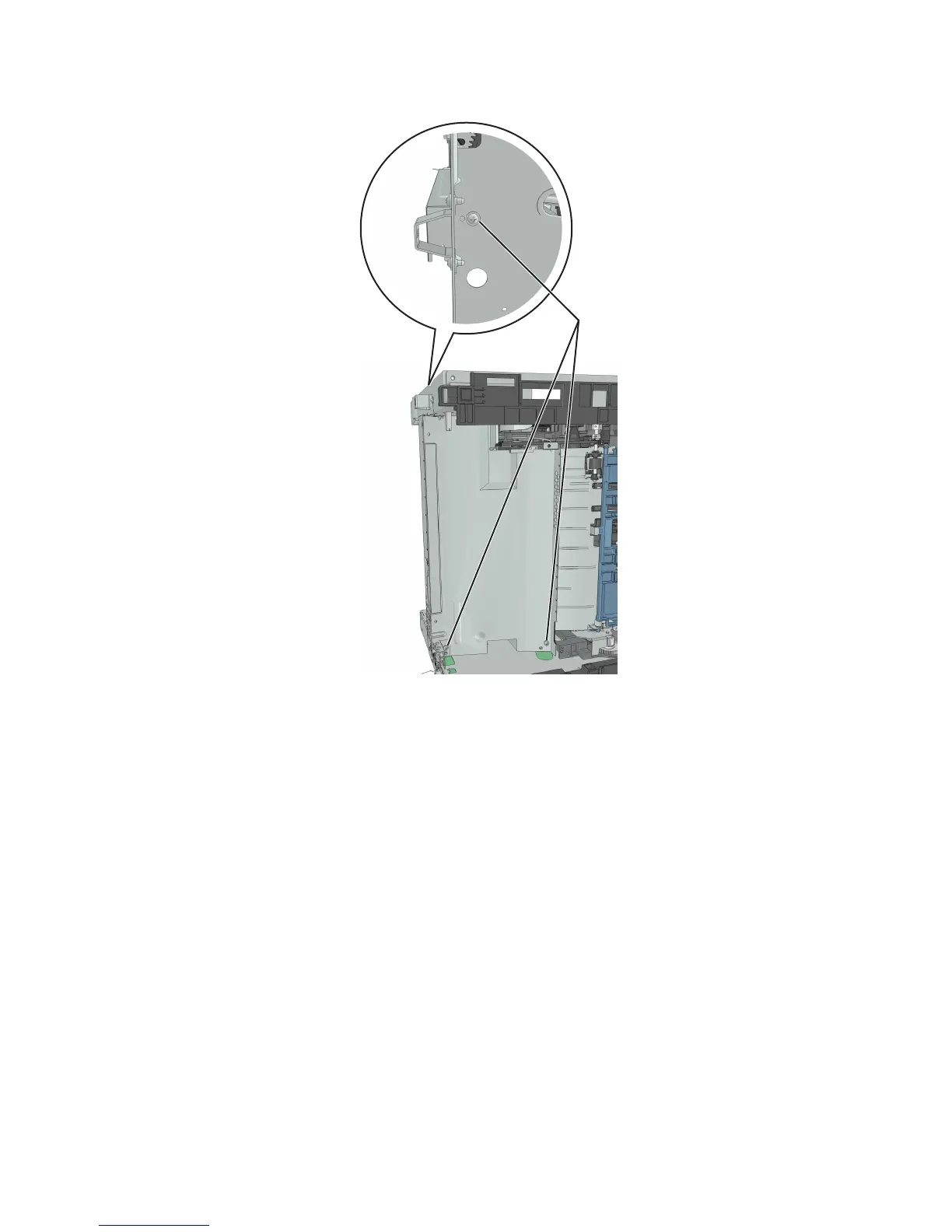

5 Remove the three screws (A), and then remove the power supply shield.

Duplex removal

1 Remove the left cover. See “Left cover removal” on page 166.

2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.

3 Remove the power supply. See “Power supply removal” on page 223.

4 Remove the power supply shield. See “Power supply shield removal” on page 225.

5 Position the printer so that it sits on its right side.

4514-630, -635, -636

Repair information

226
