Right side removals

Right cover removal

1 Open the front door.

2 Position the printer so that it sits on its left side.

3 Remove the two screws (A) securing the right cover.

4 Release the latches (B) to remove the right cover.

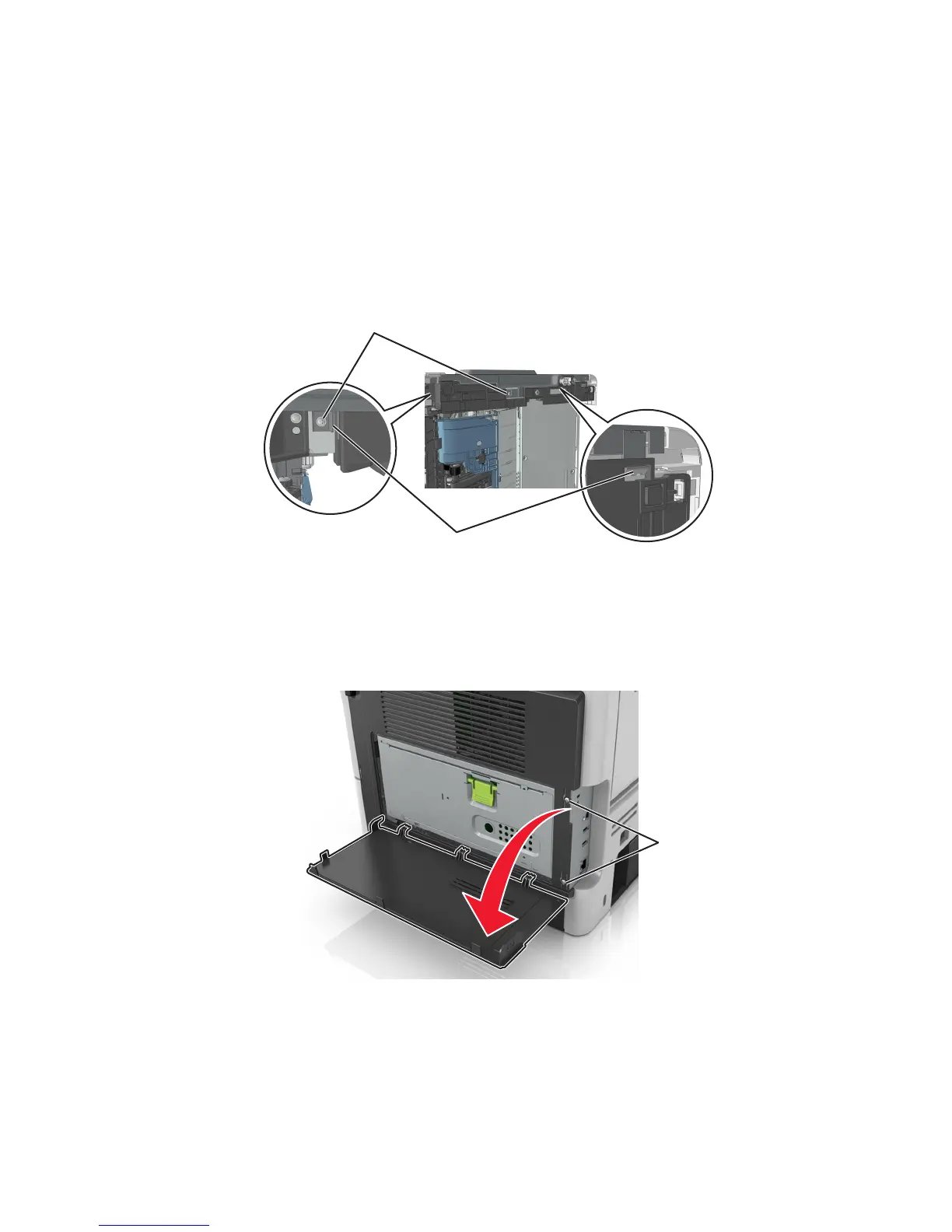

Right cover removal (MS610de)

1 Open the controller board access door.

2 Remove the two screws (A).

3 Open the front door.

4 Position the printer so that it sits on its left side.

5 Remove the two screws (B).

4514-630, -635, -636

Repair information

178
