Lexmark MS610 Series Service Manual

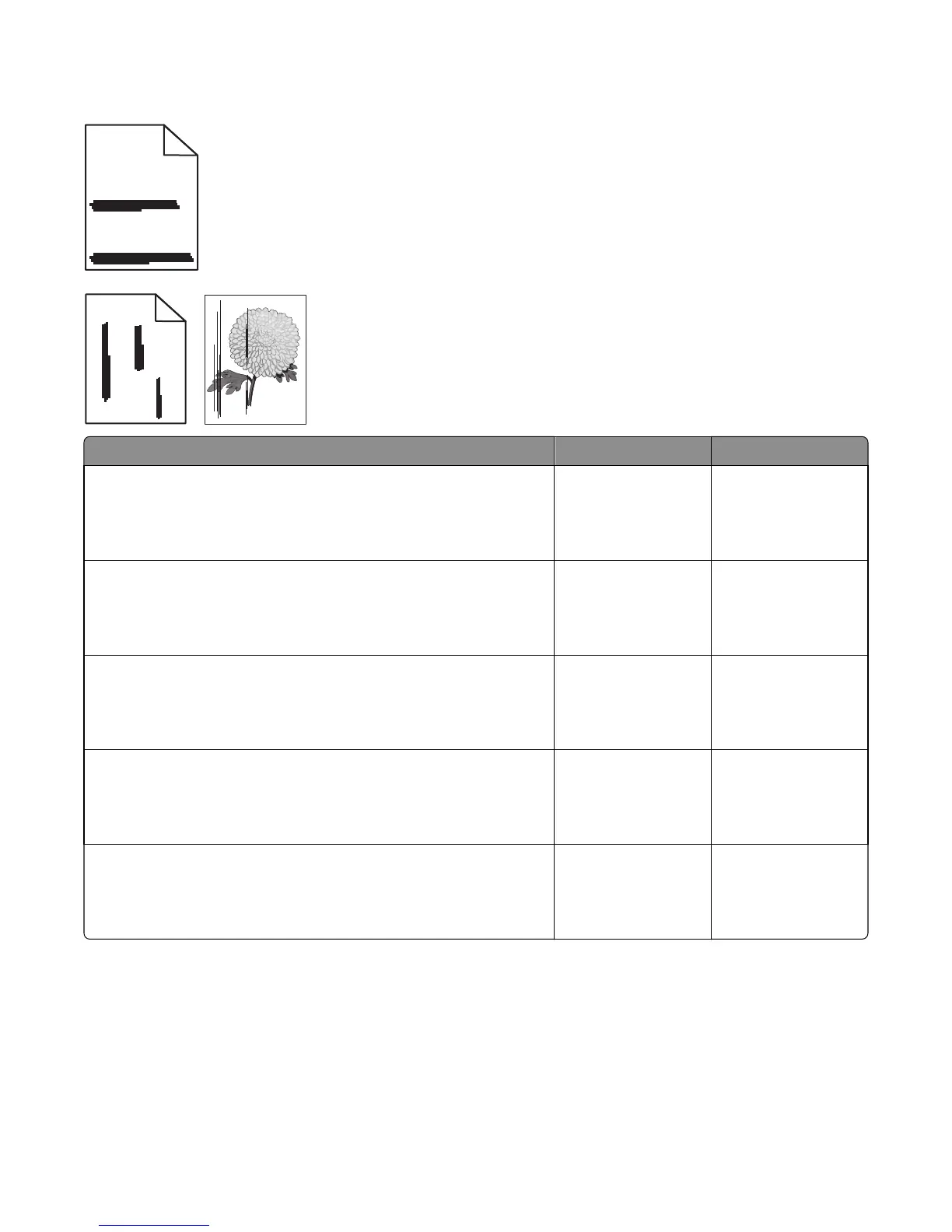

Streaked horizontal or vertical lines appear on prints
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Actions Yes No
Step 1
Check the imaging unit for wear or damage.
Is it free of wear or damage?
Go to step 2. Replace the imaging
unit.
Step 2
Make sure the paper path is free of debris or toner contamination.
Does the problem remain?
Go to step 3. The problem is solved.
Step 3
Check the transfer roll for contamination or excessive wear.
Is it free of contamination or wear?
Go to step 4. Replace the transfer
roll. See “Transfer roll
removal” on page
193.
Step 4
Remove the fuser and check for damage or debris on the rollers and belts.
Is it free of damage and debris?
Go to step 5. Replace the fuser. See
“Fuser removal” on
page 244.
Step 5
Reseat the cables JVIDEO1 and JGLV on the controller board.
Does the problem remain?
Replace the LSU. See
“Laser scanning unit
(LSU) removal” on
page 246.
The problem is solved.
4514-630, -635, -636
Diagnostic information
51

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
