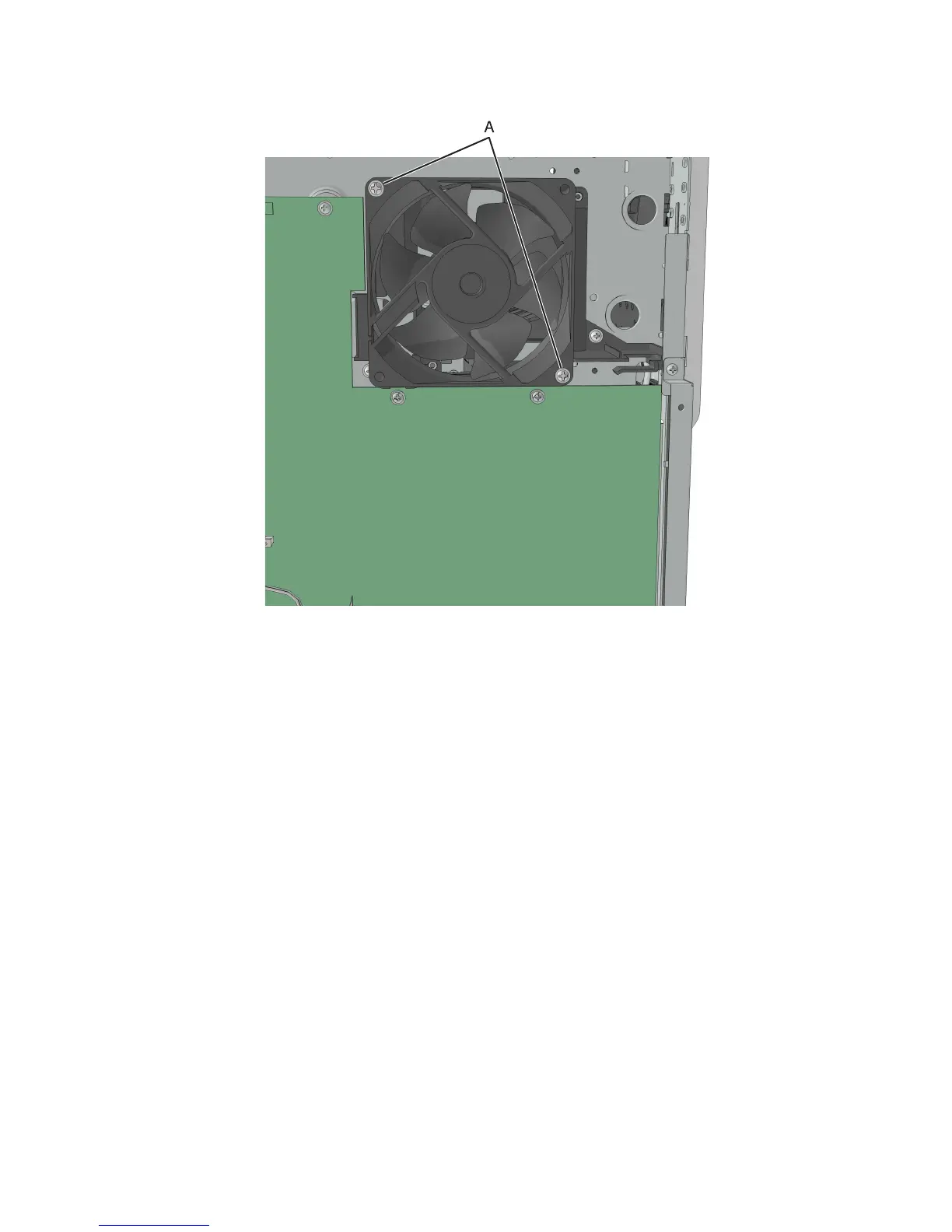

3 Remove the two screws (A), and then remove the fan.

Cooling fan mount removal (MS610de)

Note: This is not a FRU.

1 Remove the right cover. See “Right cover removal” on page 178.

2 Remove the cooling fan. See “Cooling fan removals” on page 180.

4514-630, -635, -636

Repair information

182
