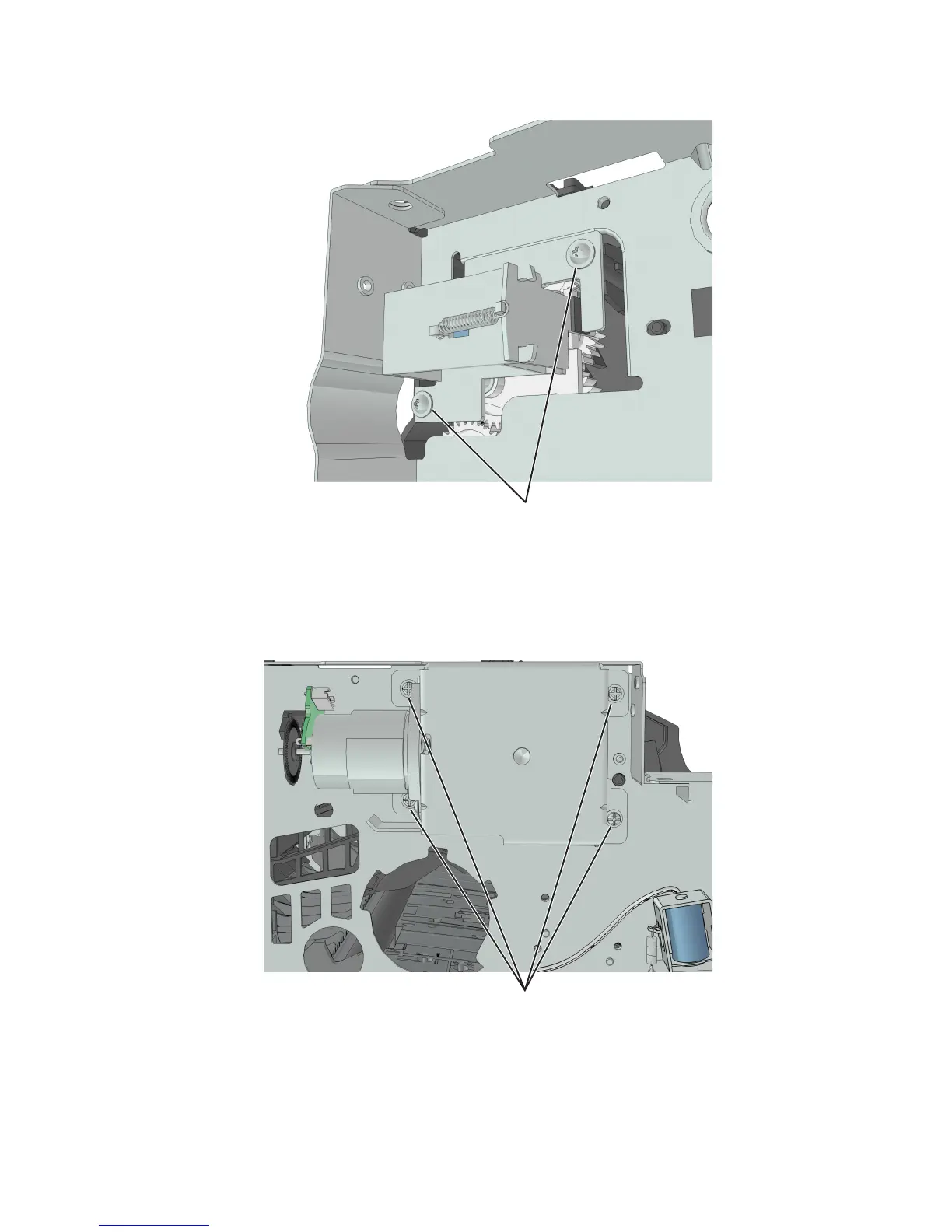

7 Remove the two screws (A) securing the reverse solenoid.

A

Cartridge gearbox removal

1 Remove the left cover. See “Left cover removal” on page 166.

2 Remove the four screws (A) securing the cartridge gearbox.

A

3 Disconnect the cable from the cartridge gearbox.

4514-630, -635, -636

Repair information

175
