Lexmark MS610 Series Service Manual

Horizontal top contact connector
This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding.
The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two tabs located
on each end of the actuator. The two tabs should be moved simultaneously. Do not close the actuator from the
center of the actuator.
Removing a cable from the horizontal top contact connector
1

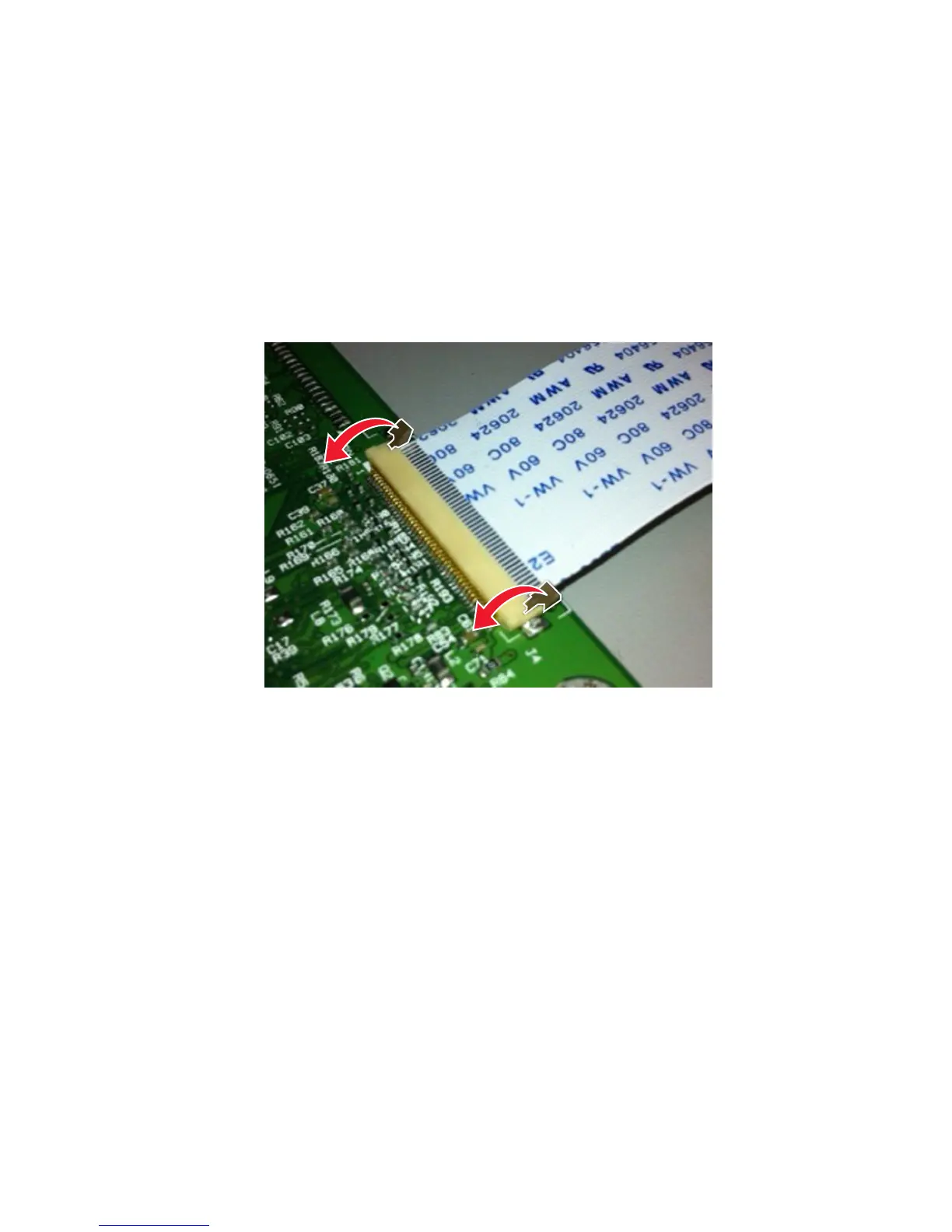

Place a finger at each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
4514-630, -635, -636
Repair information
150

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
