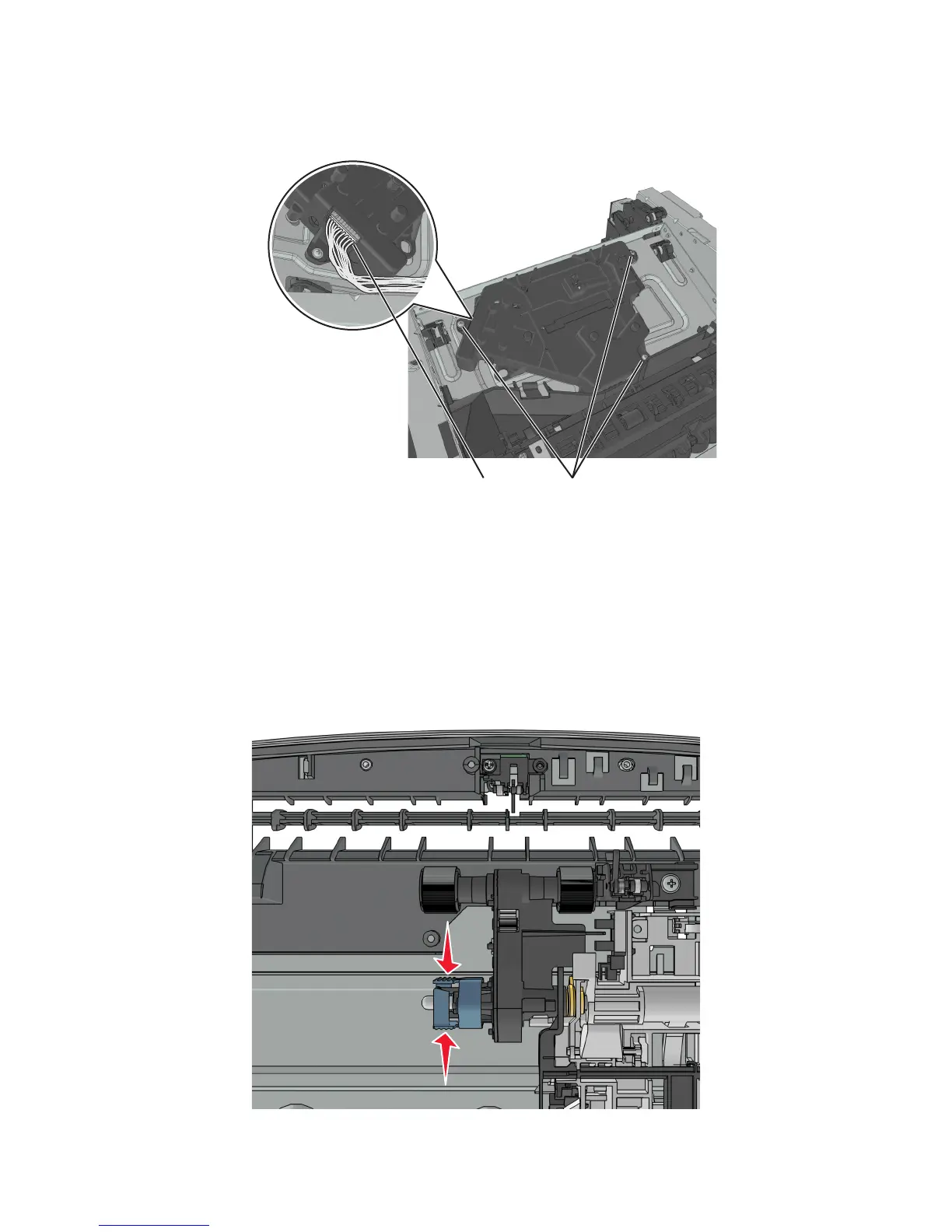

7 Disconnect the cable JGLV1 or J6 from the controller board.

8 Remove the three screws (B) securing the LSU.

BA

9 Align the printhead. See “Printhead assembly adjustments” on page 163.

250/550-sheet option tray removals

Pick roller removal

Press the latches, and then remove the pick roller.

4514-630, -635, -636

Repair information

247
