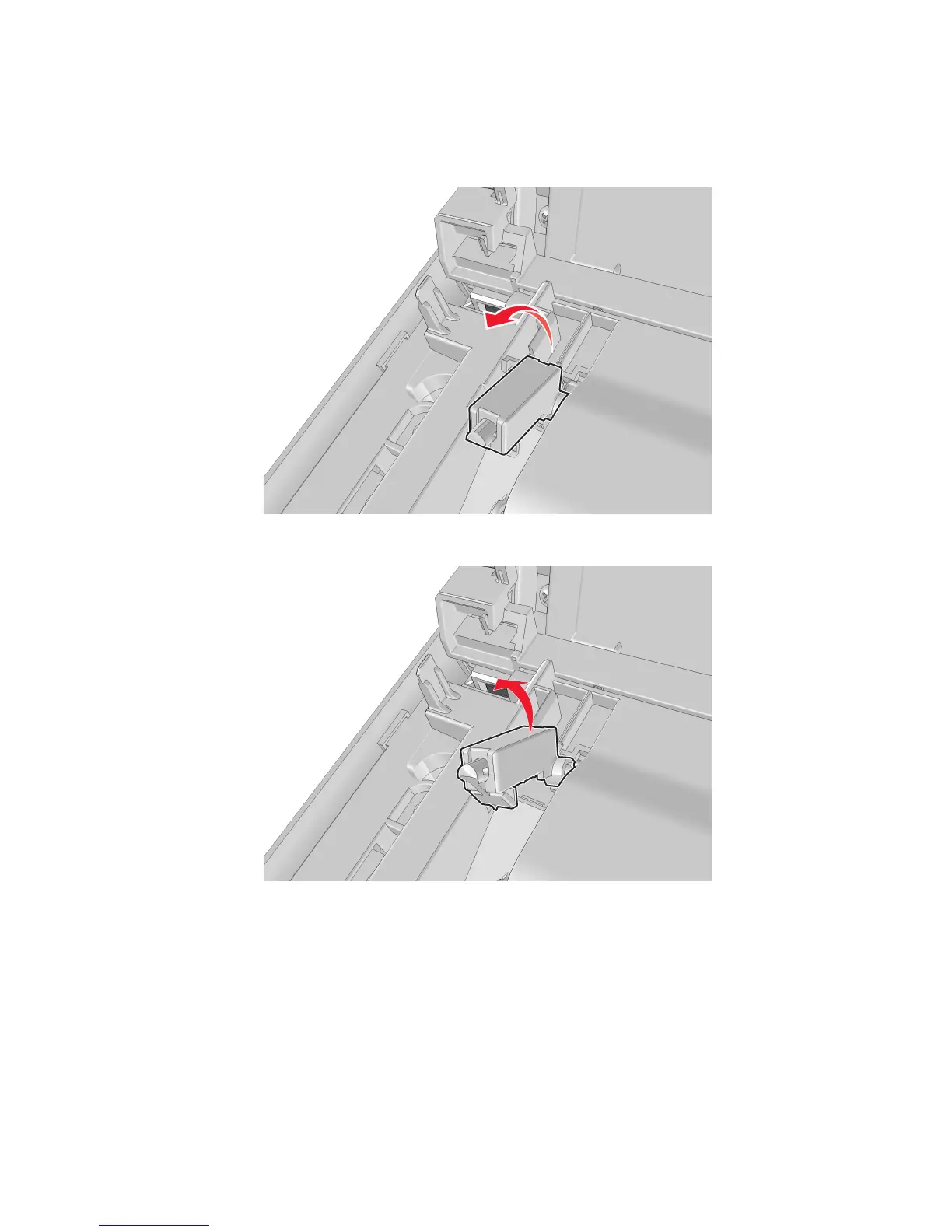

Cartridge plunger removal

1 Open the front door.

2 Tilt the cartridge plunger.

3 Twist and then remove the cartridge plunger.

4514-630, -635, -636

Repair information

194
