6 Remove the duplex. See “Duplex removal” on page 226.
7 Position the printer so that it sits on its left side.
8 Disconnect the cable JACM1 from the controller board.

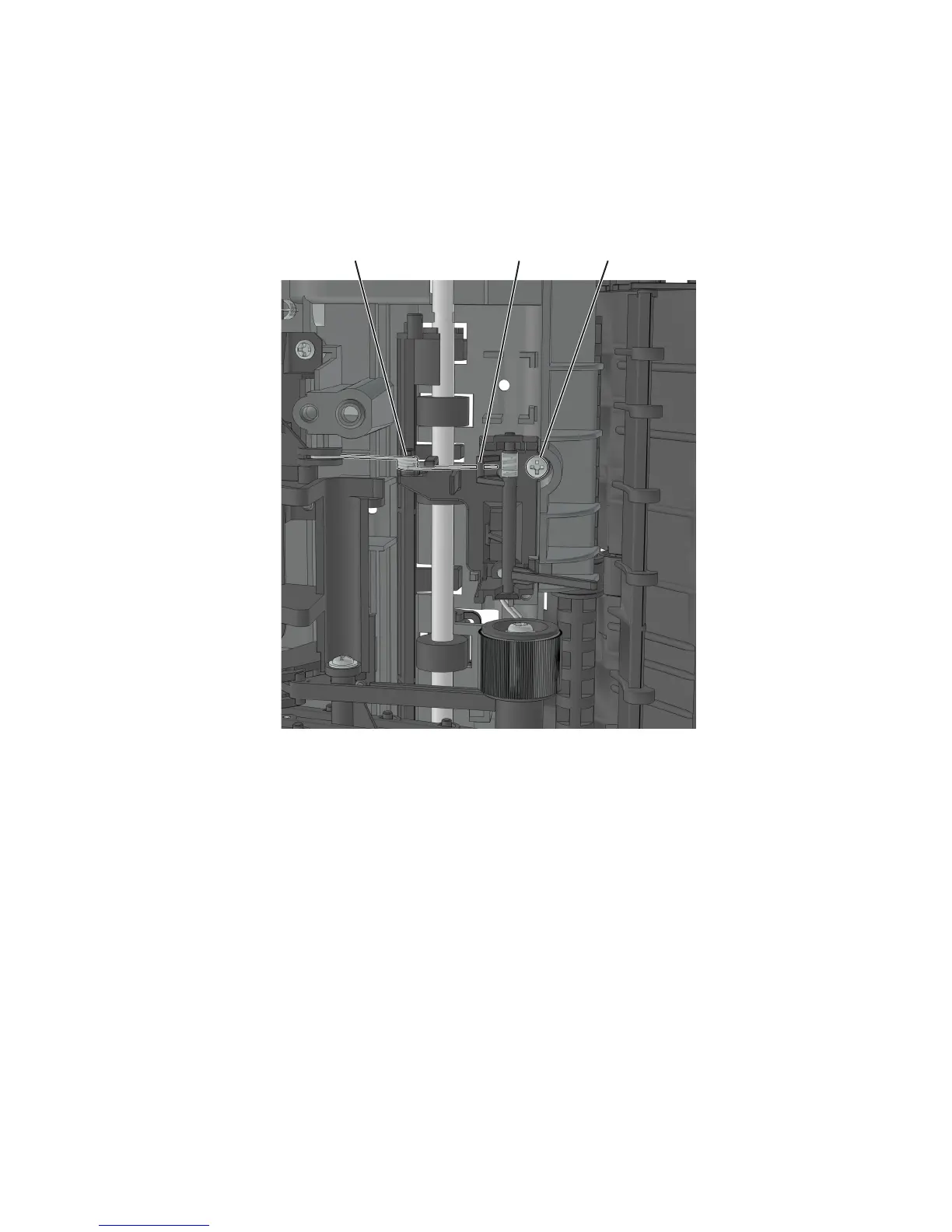

9 Release the retainer spring (A) from the bracket (B).
10 Remove the screw (C).
A C
B
ACM assembly removal
1 Remove the left cover. See “Left cover removal” on page 166.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.
3 Remove the power supply. See “Power supply removal” on page 223.
4 Remove the power supply shield. See “Power supply shield removal” on page 225.
5 Remove the duplex. See “Duplex removal” on page 226.
6 Position the printer so that it sits on its left side.
7 Remove the retainer spring (A).
8 Remove the spring (B).
4514-630, -635, -636
Repair information
233
