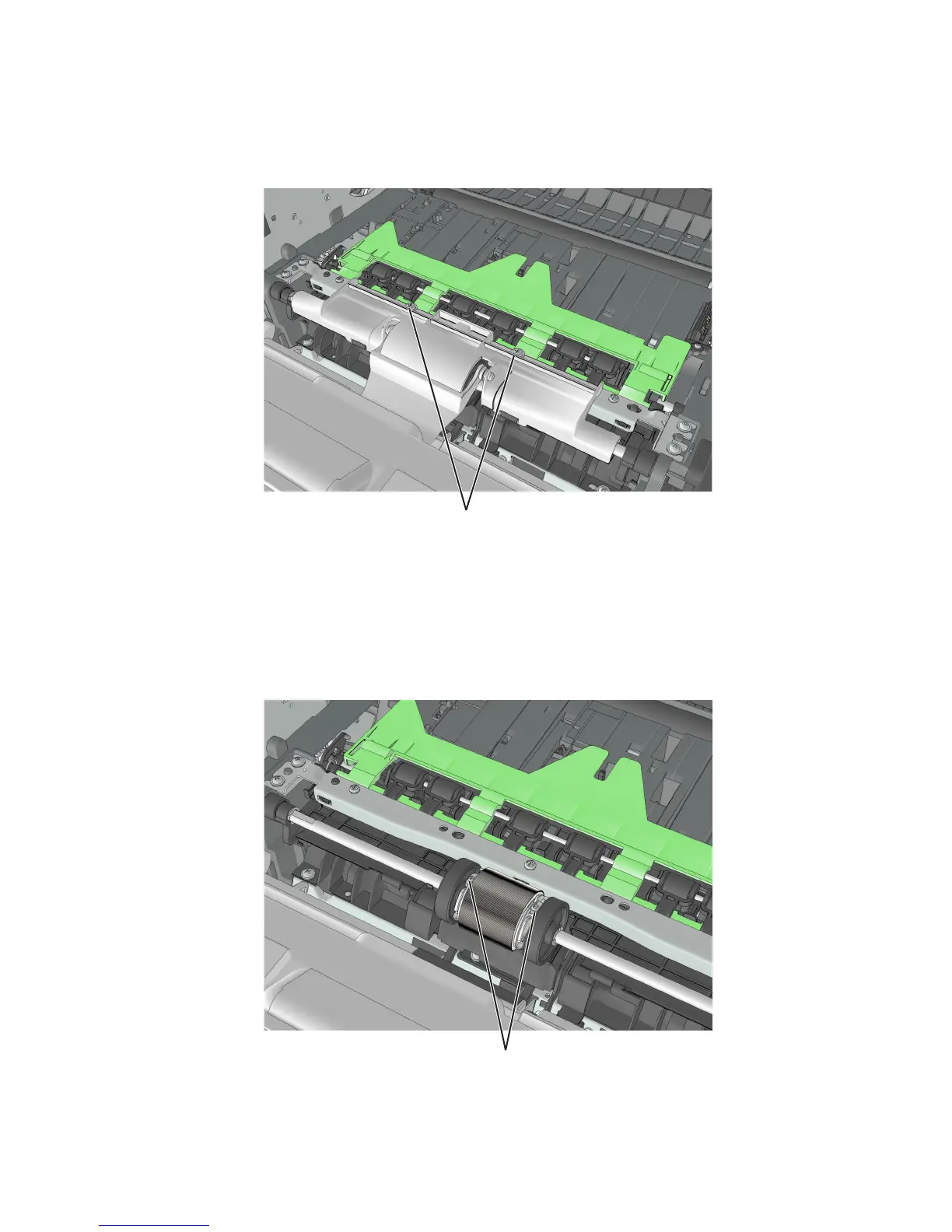

MPF pick roller cover removal

1 Open the front door.

2 Remove the two screws (A), and then remove the MPF pick roller cover.

A

MPF pick roller removal

1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 213.

2 Remove the two screws (A).

Note: Use a #1 Phillips screwdriver.

A

4514-630, -635, -636

Repair information

213
