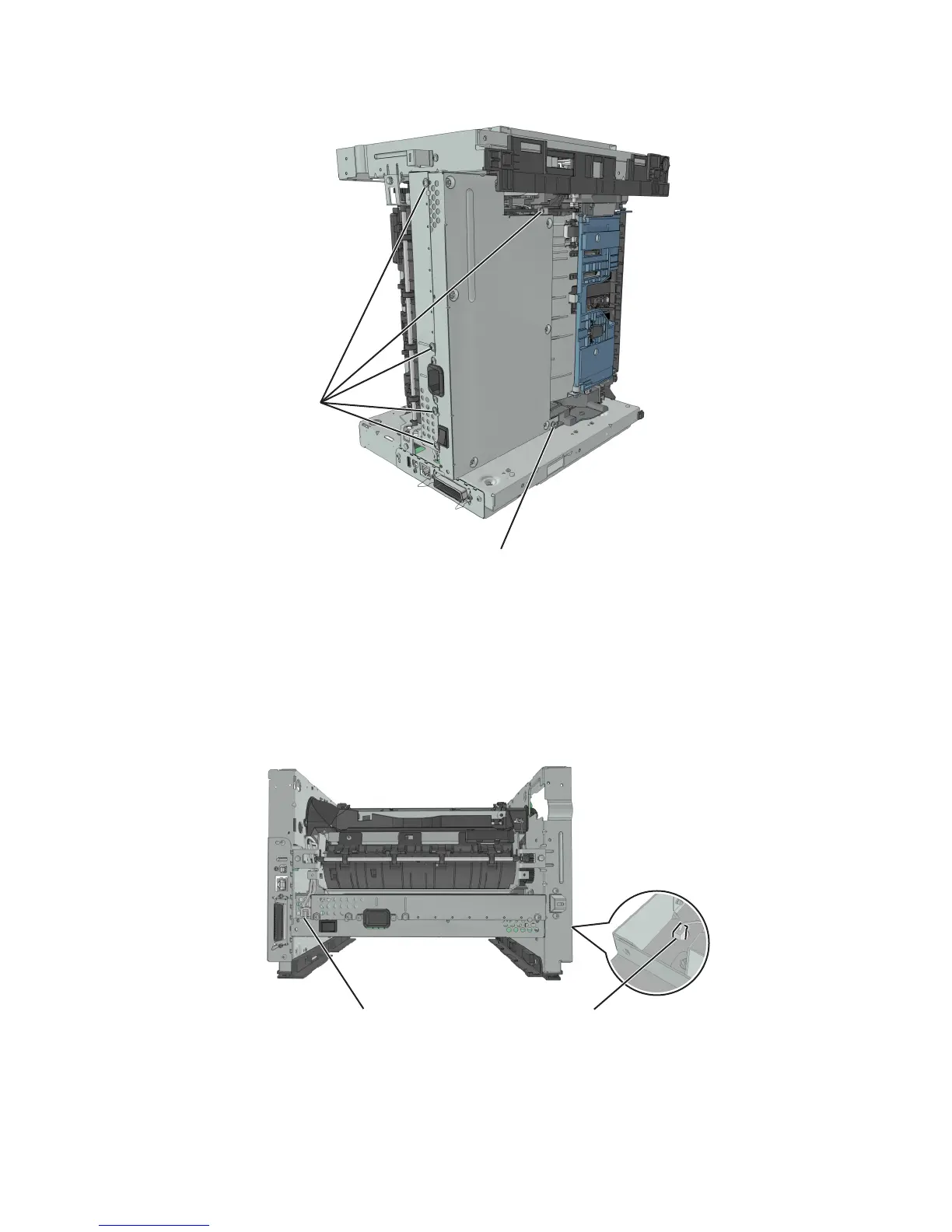

6 Remove the five metal screws (D) and the plastic screw (E) securing the power supply.

7 Remove the power supply, and then disconnect all cables from the power supply.

Power supply removal (MS610)

1 Remove the left cover. See “Left cover removal” on page 166.

2 Remove the rear door and cover. See “Rear door and cover removal” on page 240.

3 Disconnect the cable (A) from the rear, and disconnect the cable (B) from the left side.

4 Position the printer so that it sits on its right side.

4514-630, -635, -636

Repair information

224
