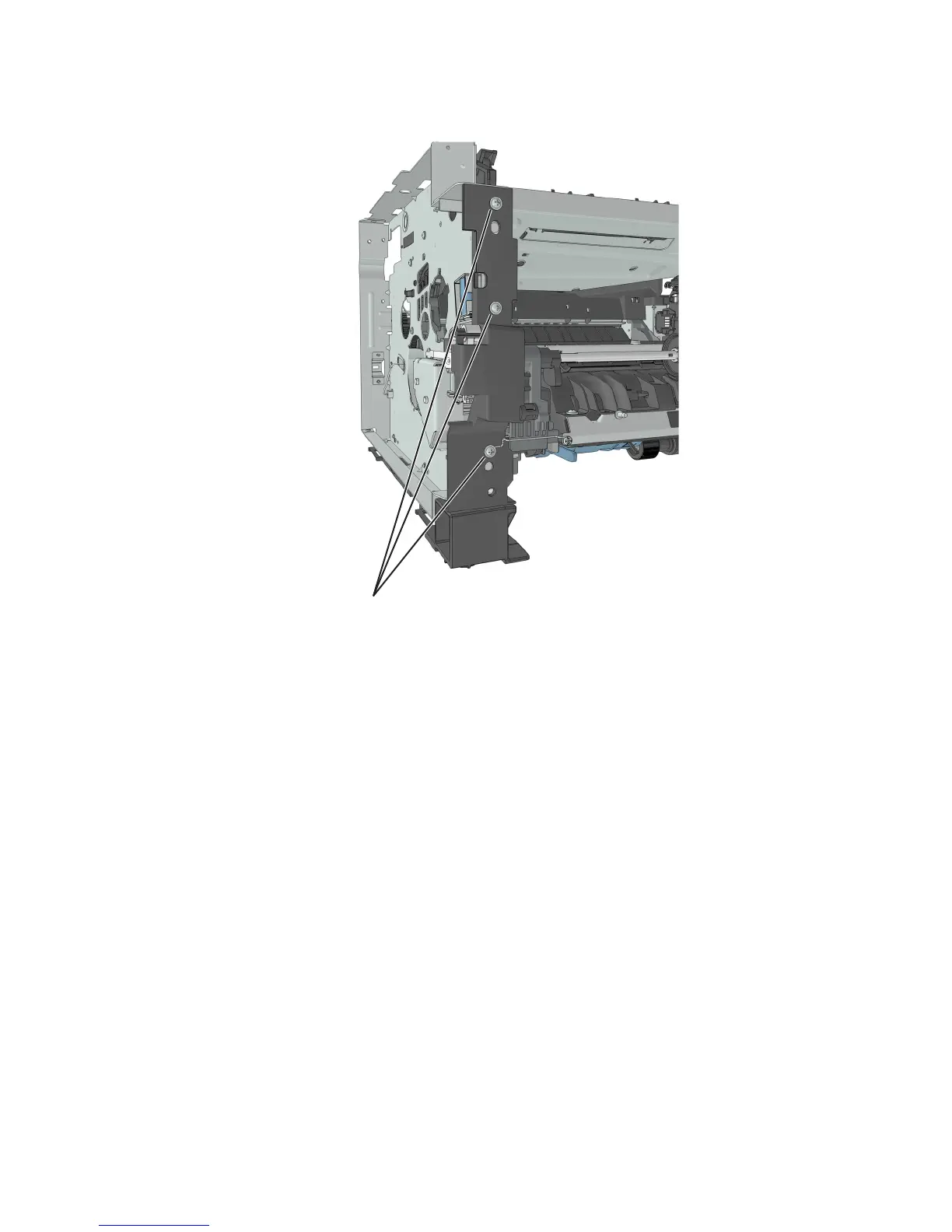

3 Remove the three screws (A), and then remove the left front mount.

A

Right front mount removal

1 Remove the right cover. See “Right cover removal” on page 178.

2 Disconnect all control panel cables from the controller board.

3 Disconnect the cable JCVR1 from the controller board.

4514-630, -635, -636

Repair information

191
