Lexmark MS610 Series Service Manual

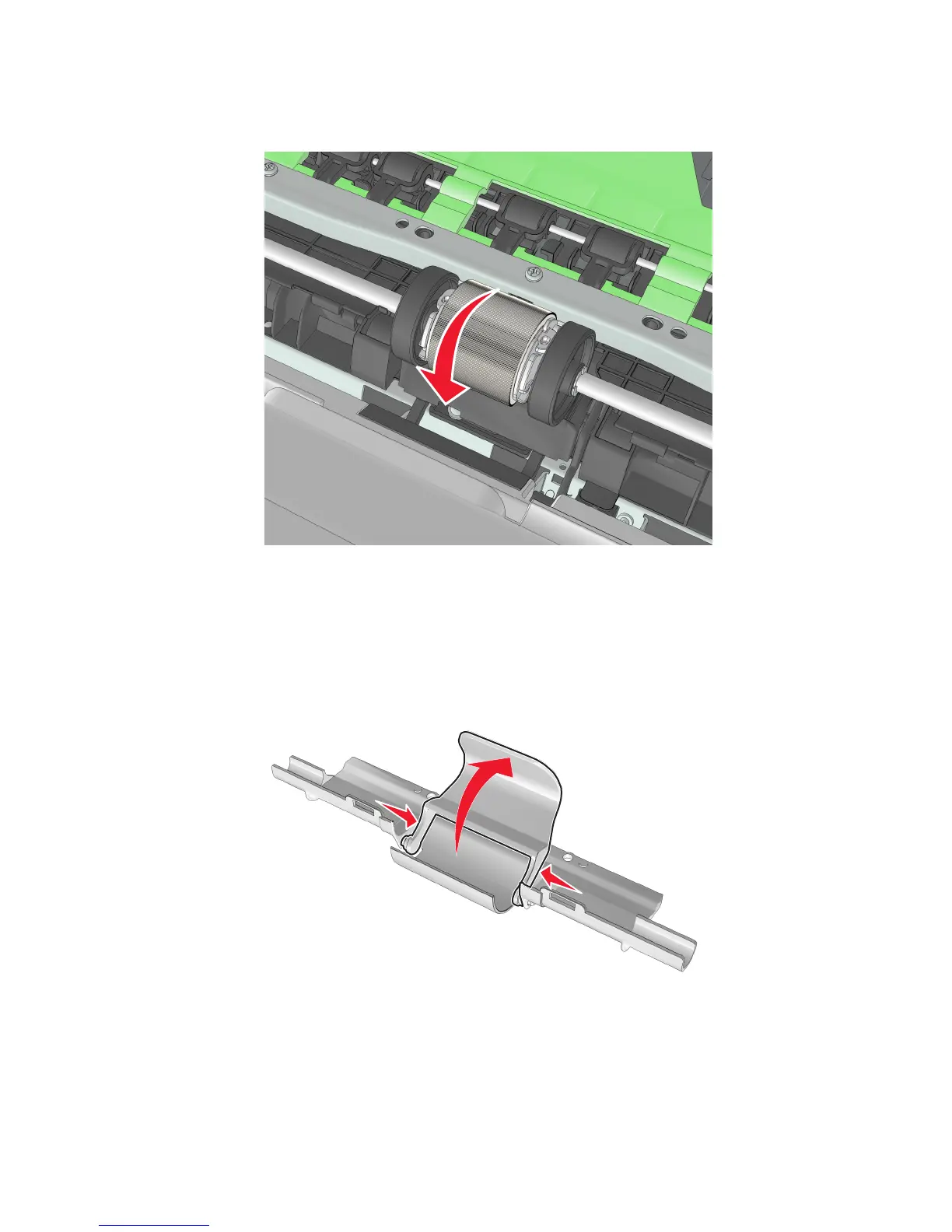

3 Pull the MPF pick roller outward to remove.
Warning—Potential Damage: Do not touch the pick tire with bare hands, as this can damage the pick roller.
Bail removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 213.
2 Rotate the bail.
3 Squeeze the latches, and then remove the bail.
Jam access cover removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 213.
2 Remove the MPF pick roller. See “MPF pick roller removal” on page 213.
4514-630, -635, -636
Repair information
214

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
