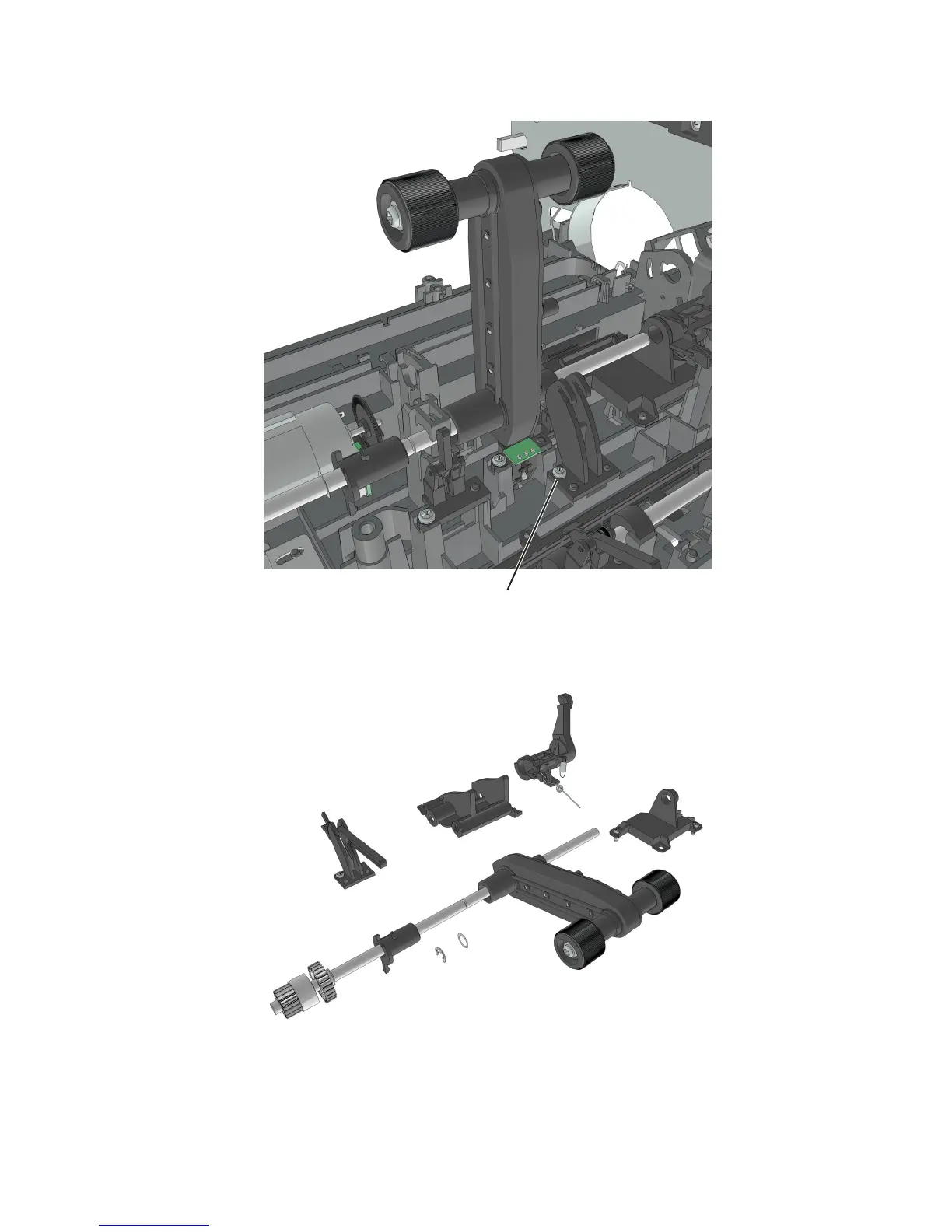

16 Remove the screw (G) securing the media present sensor bracket.

G

17 Remove the ACM assembly with shaft.

Below is the ACM assembly with media present sensor flag and bracket.

4514-630, -635, -636

Repair information

238
