14 Remove the media present sensor flag by pushing it until it clicks, and slide it off the ACM assembly.

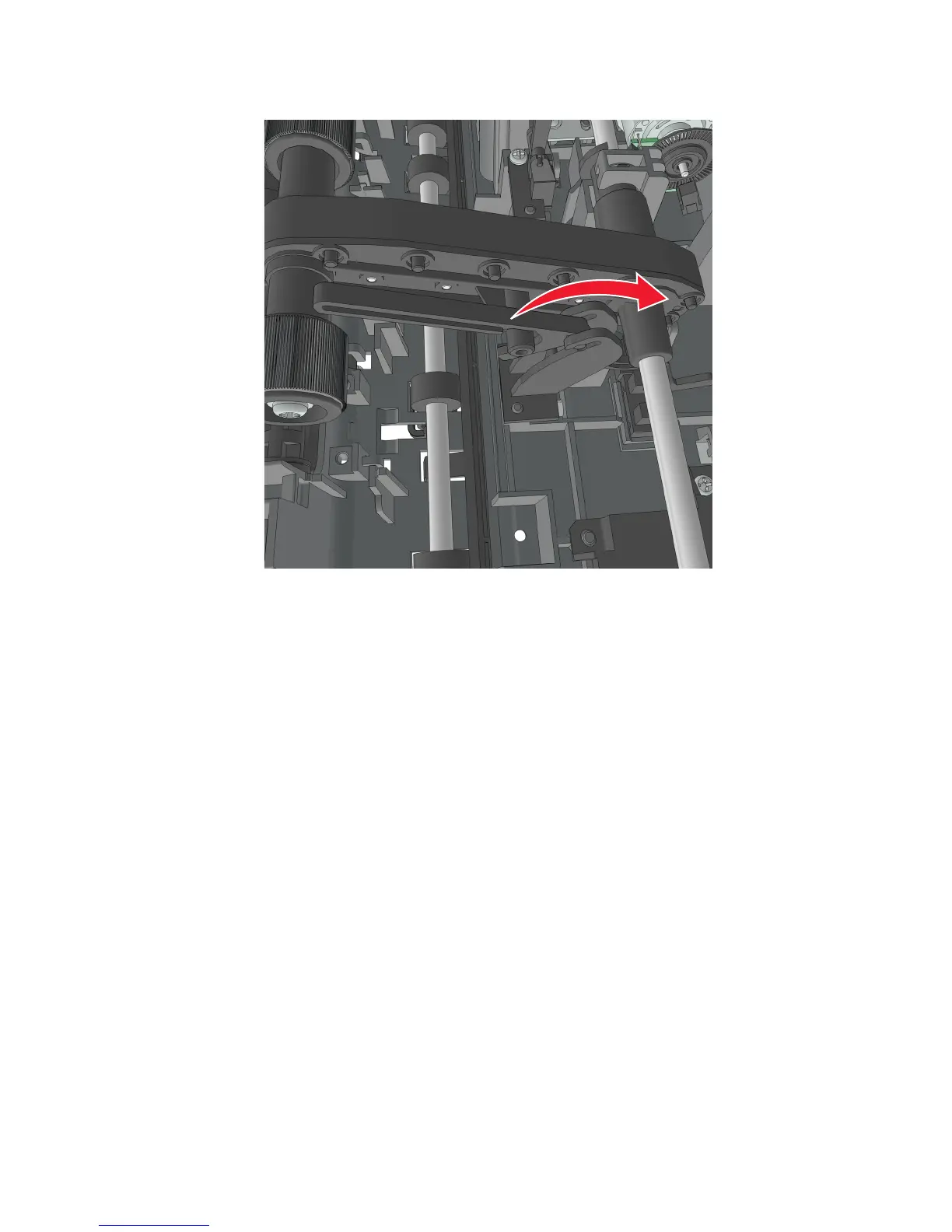

15 Swing the ACM assembly.

4514-630, -635, -636

Repair information

237
