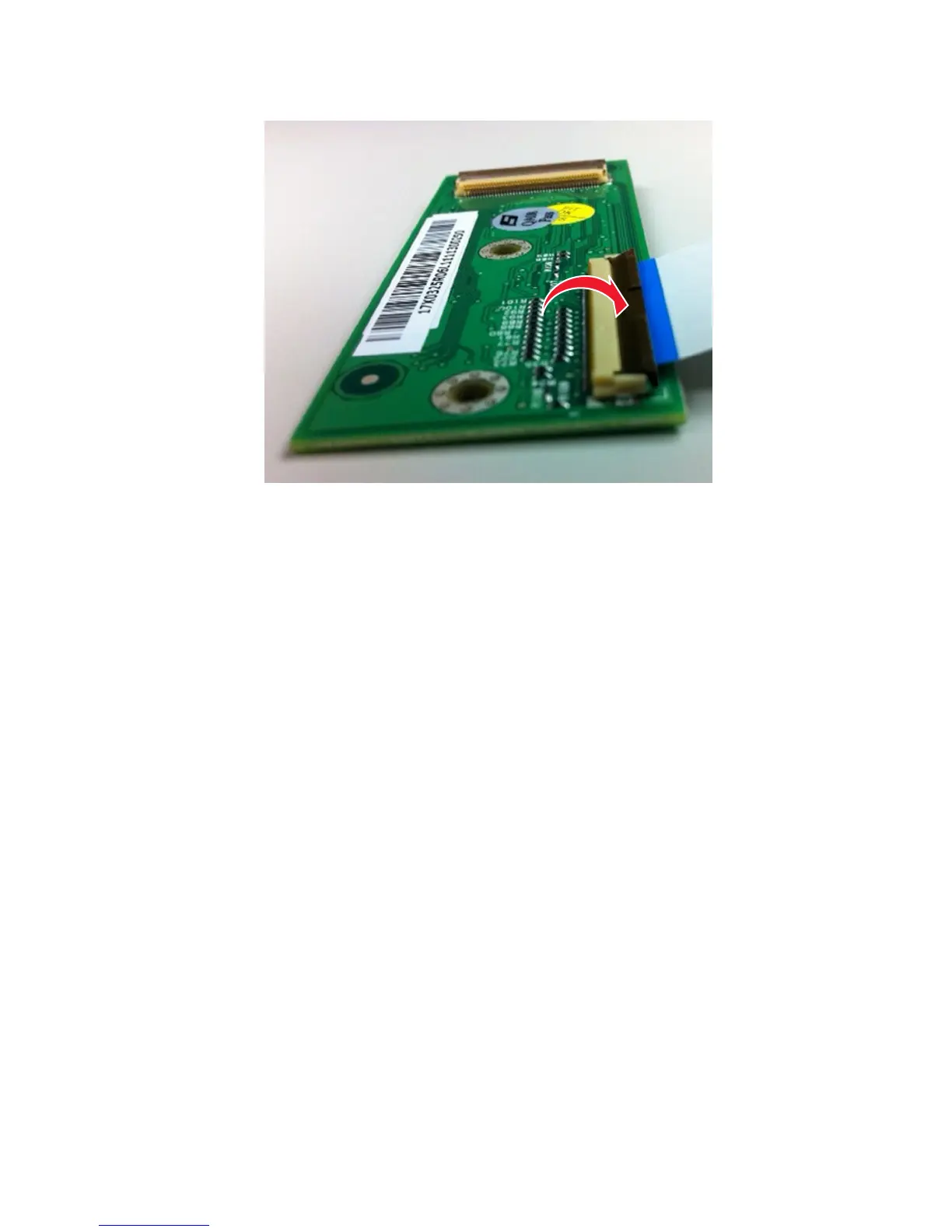

3 Place your finger in the middle of the actuator, and then rotate the locking actuator to the locked position.

4514-630, -635, -636

Repair information

155
