Lexmark MS610 Series Service Manual

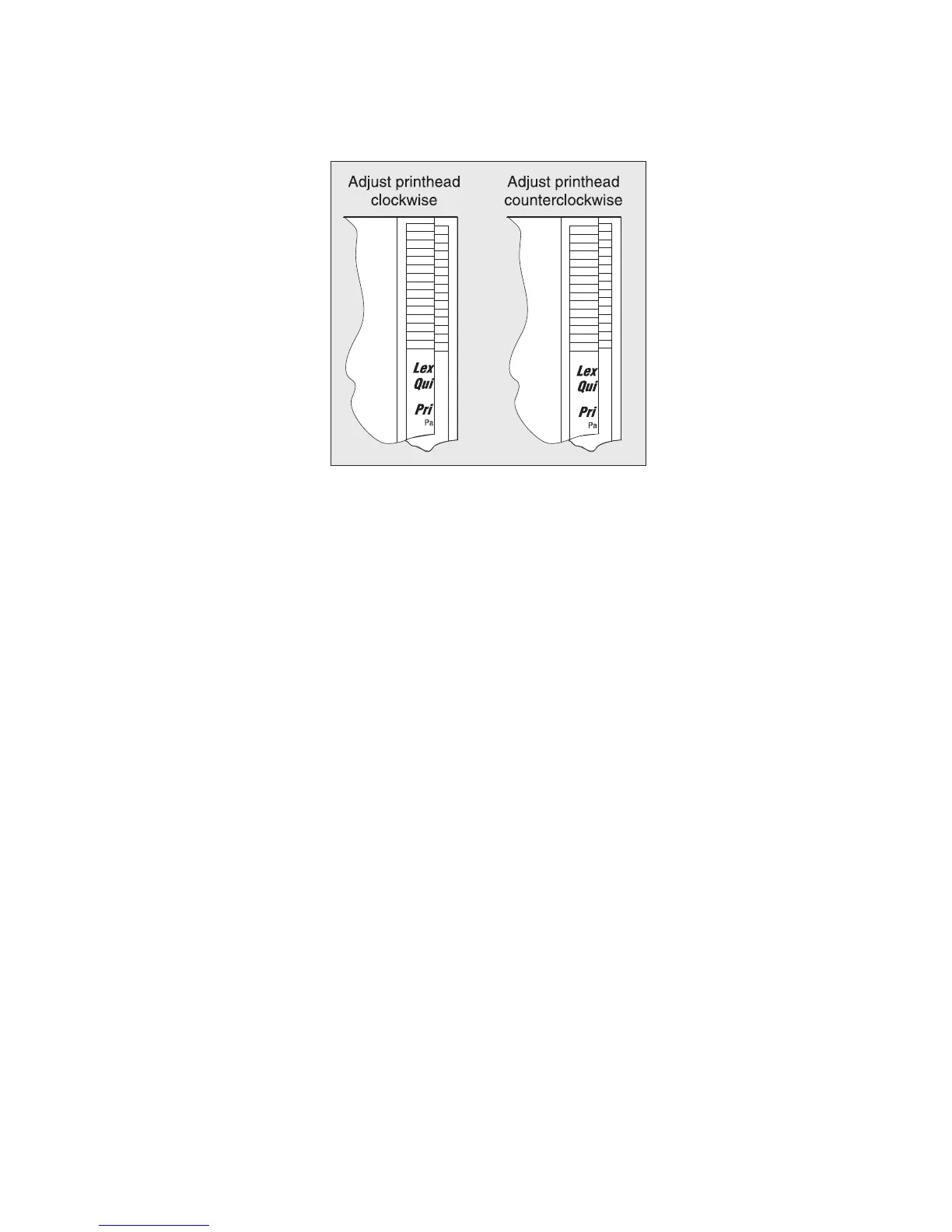

4 If the grid lines of the right flap align below the corresponding lines on the left flap, then adjust the printhead
clockwise relative to the printer, and recheck. If the grid lines of the left flap align below the corresponding lines of
the right side, then adjust the printhead counterclockwise.
5 Print another Quick test page, and check if adjustments are still needed.
6 After obtaining a properly adjusted image on the paper, tighten all the screws.
7 Align the printhead electronically.
Printhead assembly electronic adjustment
Note: Before aligning the printhead electronically, first align the printhead mechanically.
1 POR into the Diagnostics menu, and print a Quick test page:
Diagnostics Menu > Registration > Quick Test
4514-630, -635, -636
Repair information
164

Lexmark MS610 Series Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 50 ppm
Print Resolution	1200 x 1200 dpi
Processor Speed	800 MHz
Standard Memory	256 MB
Maximum Memory	1280 MB
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	Ethernet
Input Capacity	Up to 650 pages
Duplex Printing	Yes
