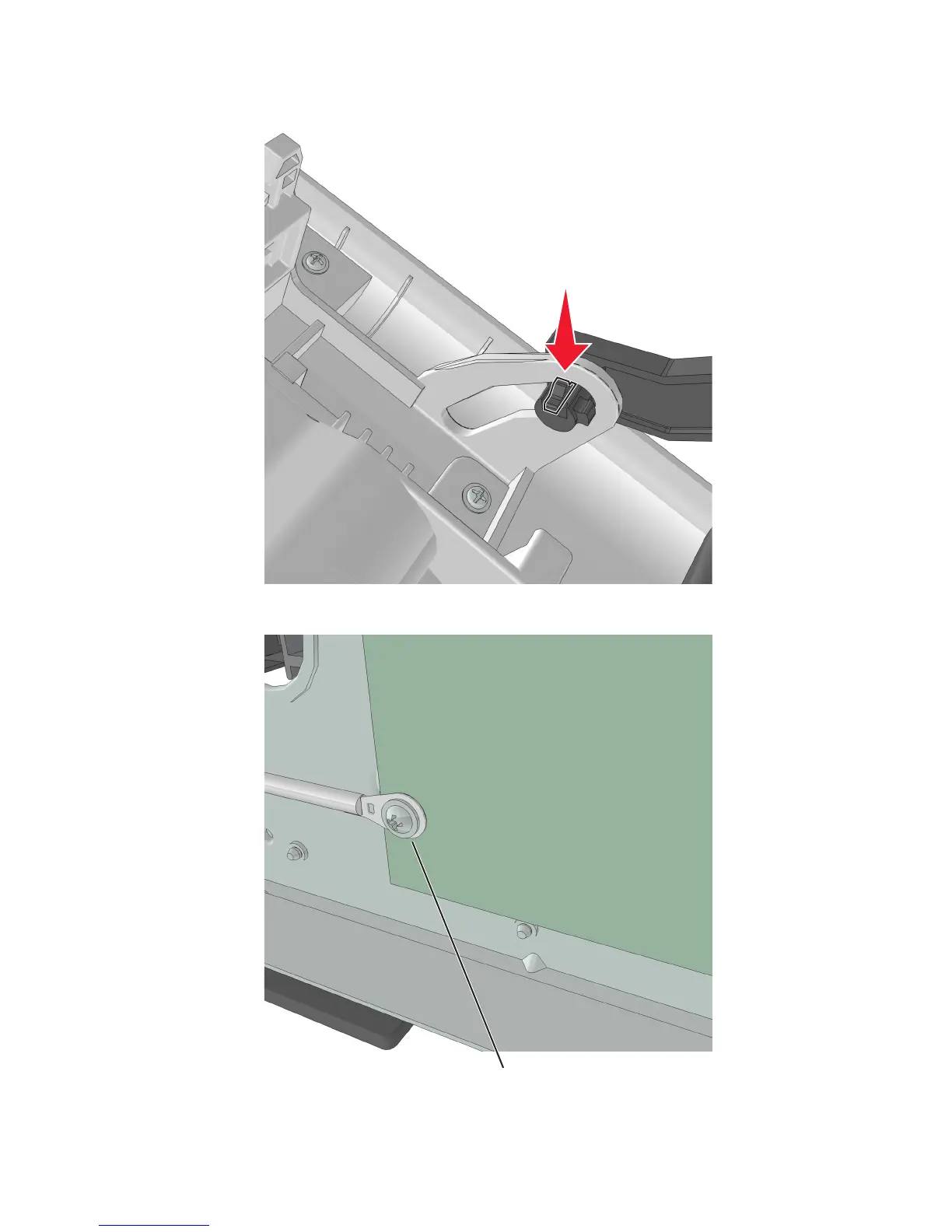

3 Squeeze the latch, and then detach the link from the front door.

4 Remove the screw (A) to disconnect the ground wire.

4514-630, -635, -636

Repair information

216
