3 Remove the rear door and cover. See “Rear door and cover removal” on page 240.

4 Remove the power supply. See “Power supply removal” on page 223.

5 Remove the power supply shield. See “Power supply shield removal” on page 225.

6 Remove the duplex. See “Duplex removal” on page 226.

7 Disconnect the cable JDUPPI1 from the controller board.

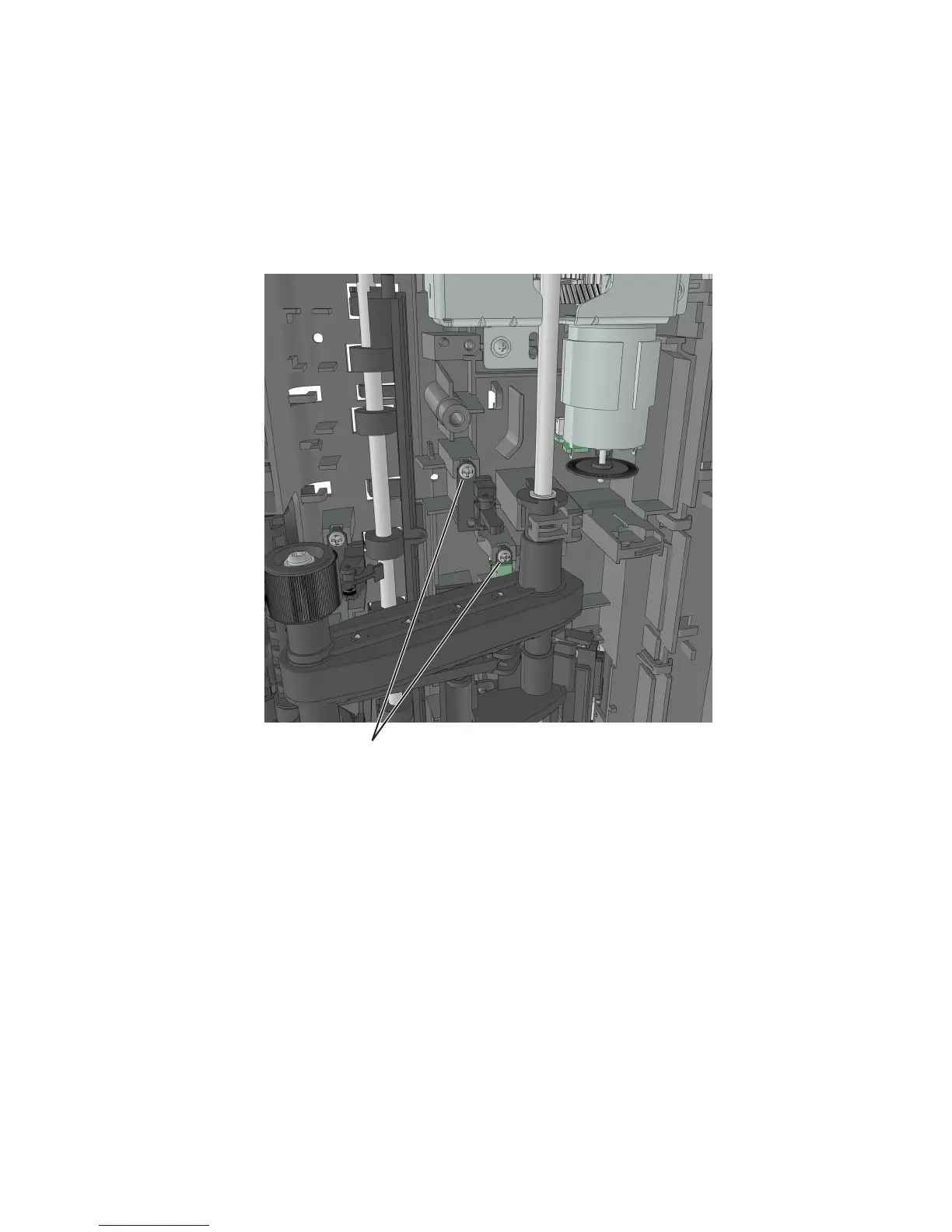

8 Remove the two screws (A), and cut the cable near the frame to detach the sensors.

9 Remove the other half of the cable from the printer.

4514-630, -635, -636

Repair information

228
