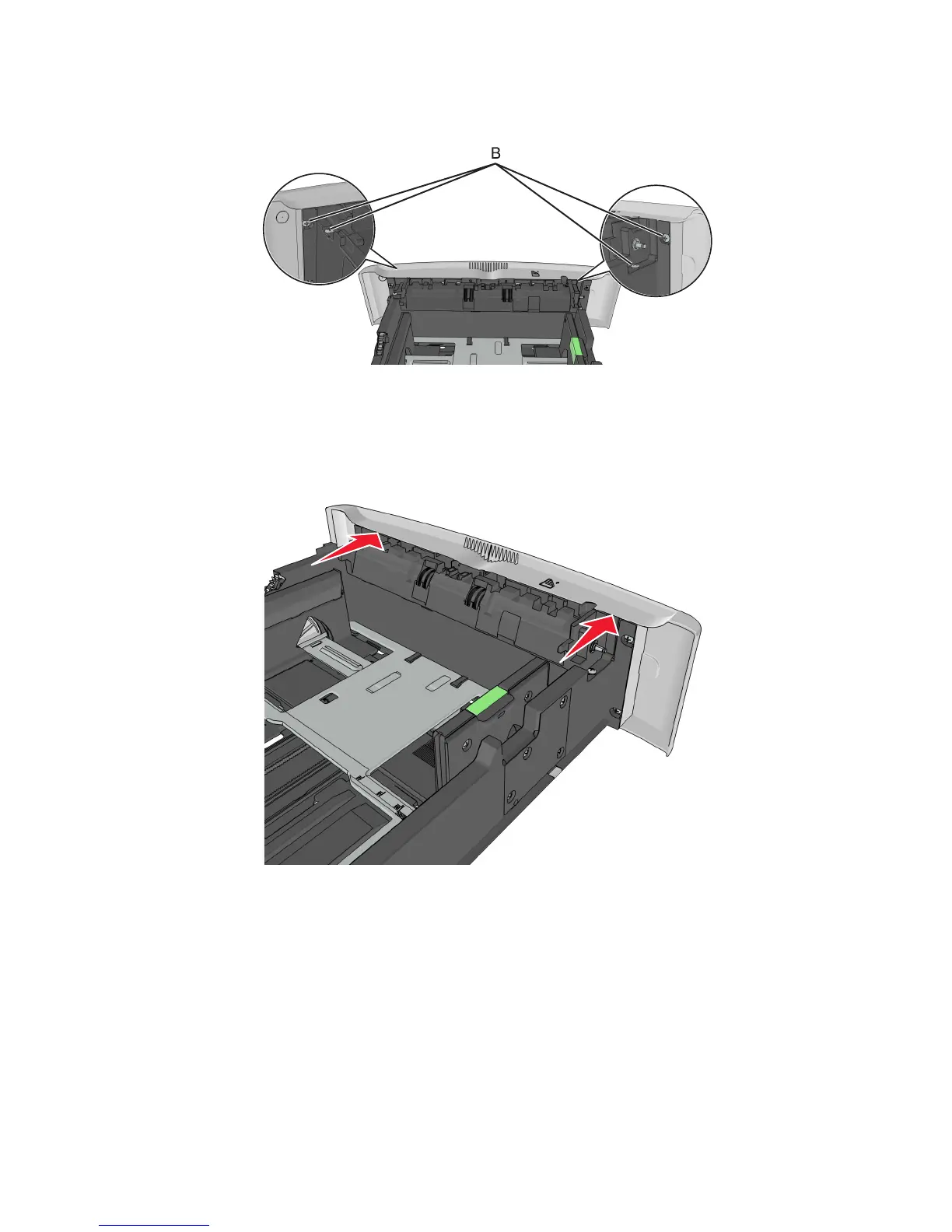

3 Remove the four screws (B).

4 Push out the top part of the drawer cover, and then remove the separator roll assembly.

4514-630, -635, -636

Repair information

249
