74 HB V2.0/Dez-11 © 2011 LPKF AG
■ Produce a drill hole
1. The preparative activities are described in detail on page 67.
➨ The PCB material is fixed on the working table.

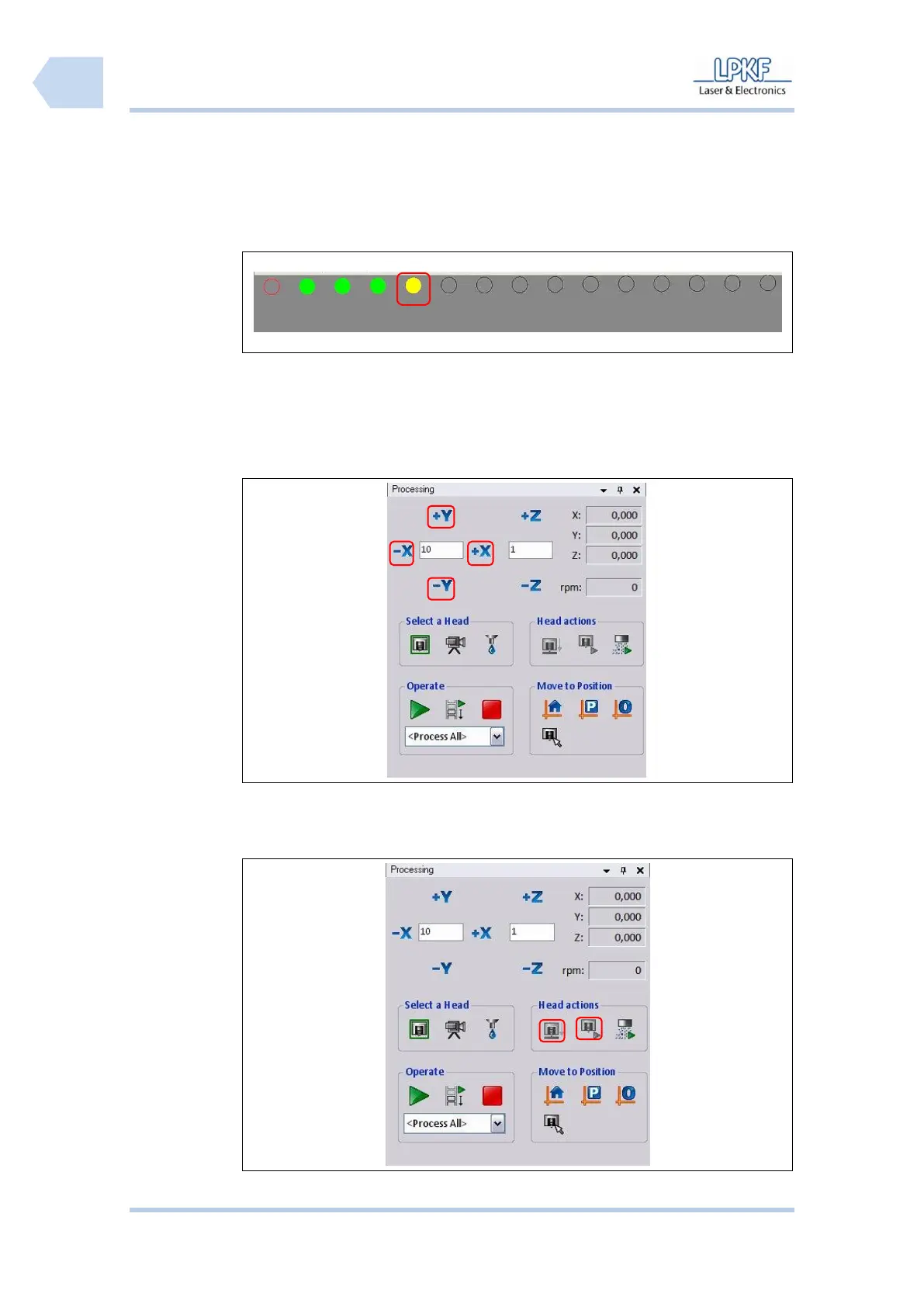

Fig. 47:
Machining view
select tool
2. Move the mouse to the tool position bar, located in the upper edge of the
window machine view and select a tool.
ProtoMat S43: Insert a tool into the collet chuck of the mill/drill head.
3. Move the mill/drill head to the start position:
4. Type a value into the input filed \X/Y step size\ and click[+X], [-X], [+Y] or
[-Y] until the drilling position is reached.
The exact position is displayed in the output fields \X:\ and \Y:\.
Fig. 49: Control
milling/drilling
head
