MERLIN LEGEND Communications System Release 6.1
Installation
555-661-140
Issue 1
August 1998
Installing Telephones and Adjuncts
Page 3-5
Installing Multi-Function Modules
NOTE:
If you are installing or replacing an MFM in a wall-mounted MLX-5,
MLX-5D, MLX-10, MLX-10D, MLX-10DP, or an MLX-16DPtelephone, start
at Step 3.
!Place the telephone face down on a flat surface; remove the user
card tray and line cable from the bottom of the deskstand. See
Figure 3–2.

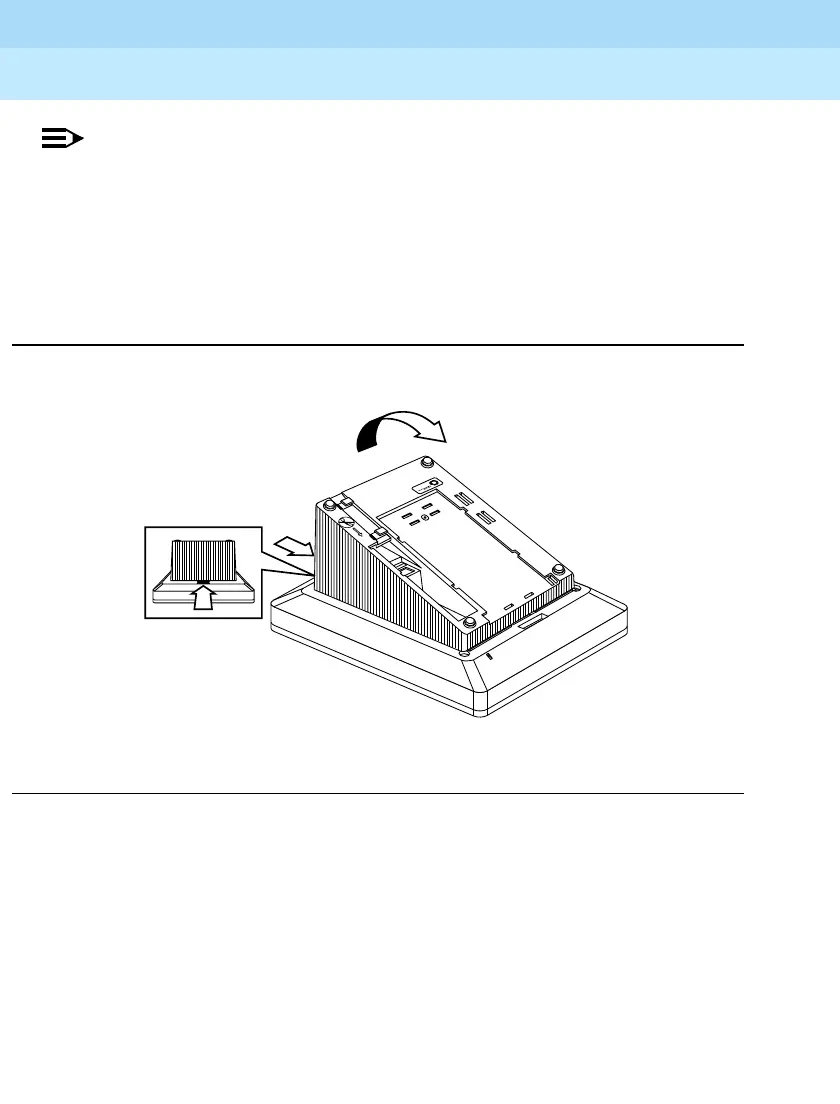

Figure 3-3. Releasing the Deskstand
!Release and remove the deskstand from the telephone. See Figure
3–3 and Figure 3–4.
a. Press on the top rear center of the deskstand to release the tab.
b. Pull the deskstand up toward you and swing away from the
telephone.
Pull Up
and
Away
Press
Center Tab
